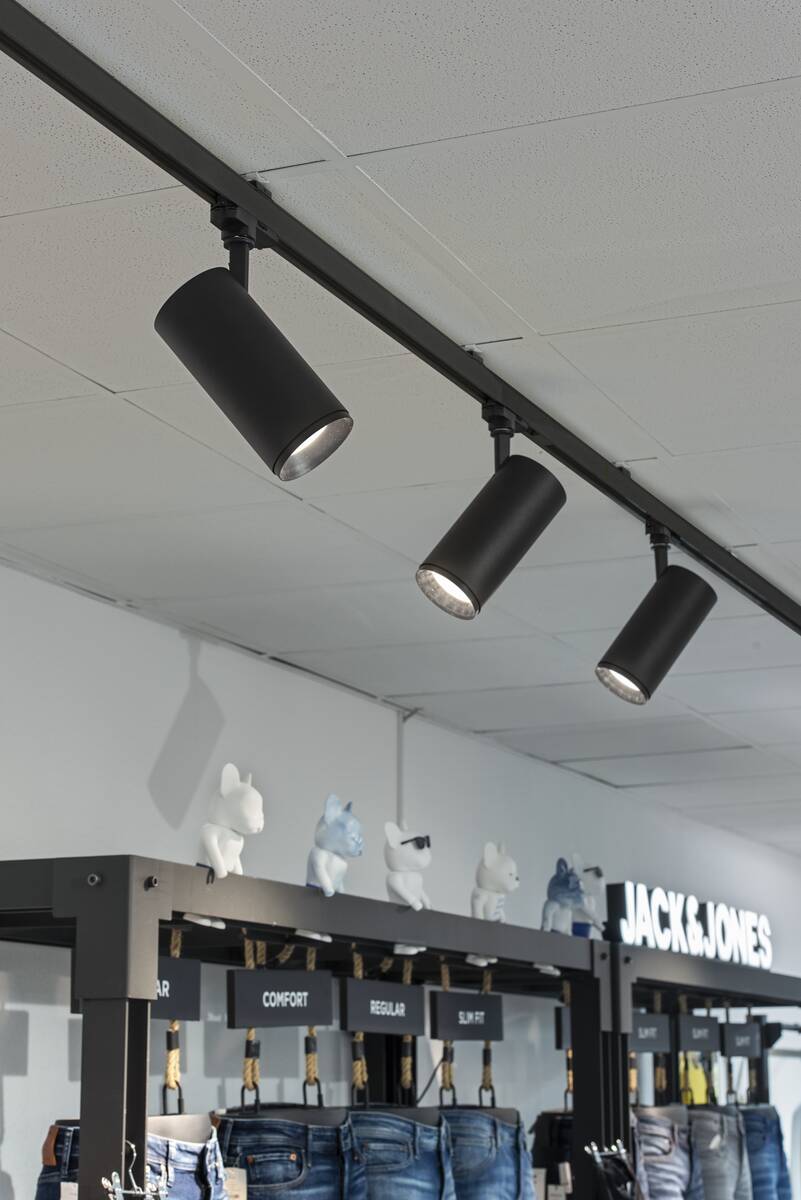

The NUMINOS® L 3Ph. DALI 3~ Spot is a cylindrical spotlight designed for mounting on ceiling track systems. It is particularly suitable for indoor use where targeted lighting is required. With a luminous flux of 2400 lumens at 19 watts and a colour temperature of 3000 K, the spot provides warm white illumination with a beam angle of 60°. The housing is made of aluminium and finished in matte black. Control is via DALI 2 and touch dimming, allowing flexible light adjustment. The spotlight has a product length of 21.3 cm, a diameter of 10 cm, and a height of 18 cm. The IP20 rating indicates protection against contact, but without special protection against ingress of dust or water.

Tehnilised andmed

Half beam angle	60 °
Colour	black
Colour temperature	3000 Kelvin
Luminous Flux	2400 lm
electrical power	19 W
CRI	90
Net weight	1.137 kg
Diameter	10 cm
Height	18 cm
Length	21.3 cm
IP Code	IP20
Service life	50000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	500 mA
Dimming options	DALI and Touch
Shape	cylindrical
Horizontal rotation range	350 °
Variant Dimm options	DALI and Touch
Different light outlets	1
Seperate beams	Yes
Vertical tilting range	90 °
Ambient temperature	-20 °C
Material	Aluminium
UGR ≤	19
LED can be changed	Control gear replaceable by a professional
Product name	NUMINOS® L
CCT Switch	No
DALI capable	Yes
Dimmable	Yes
Assembly	Track
Risk group	1
Tehnilised failid	Manual Datasheet CE declaration Removal instructions REACh
Kategooriad	3-Phase-System, High voltage track systems, Indoor, LED, Other light source, Track systems
Sildid	DALI, LED power track spotlight, LED shop lighting, Shop lighting
