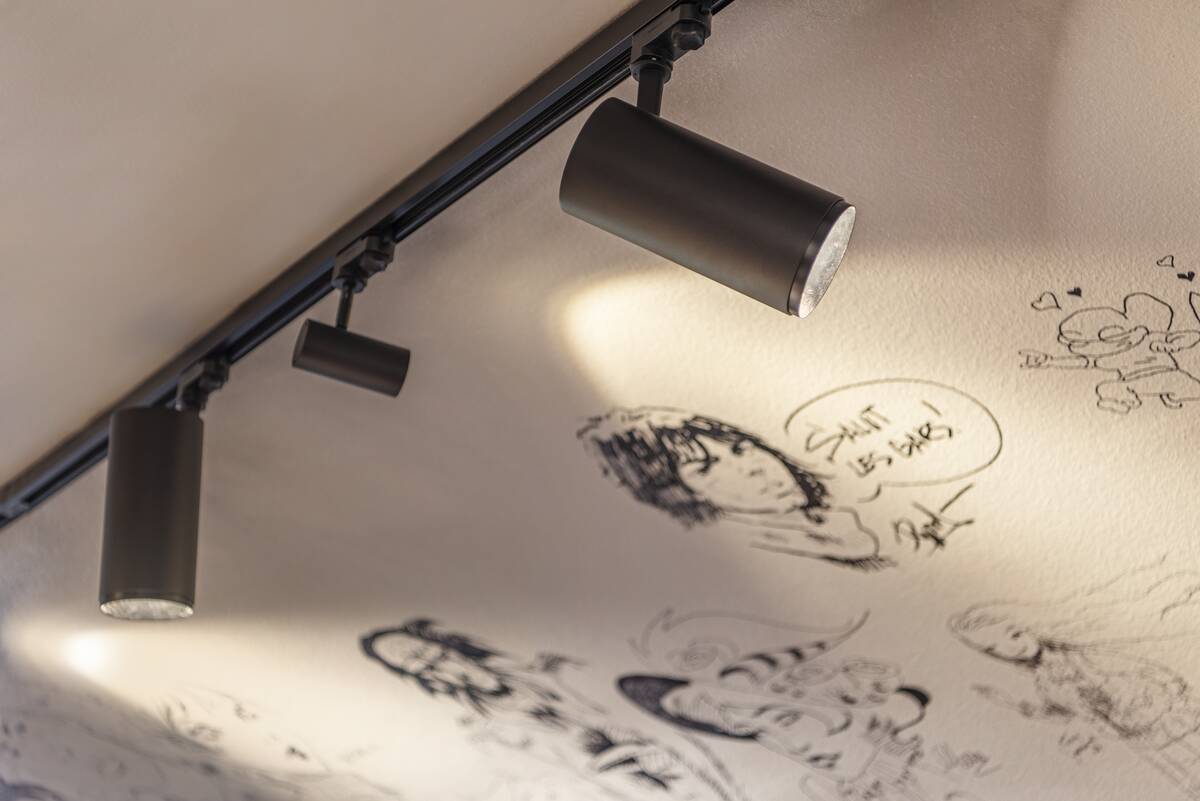

The NUMINOS® L 3Ph. is a cylindrical 3-phase spot designed for mounting on ceiling track systems. It is particularly suitable for indoor use where directional lighting is required. With a power consumption of 20 watts, the spot produces a luminous flux of 2300 lumens at a warm white colour temperature of 2700 Kelvin and a beam angle of 36 degrees. The housing is made of aluminium and finished in matte black. Dimming is achieved via phase-cut control. The spot measures 21.3 cm in length, 10 cm in diameter, and 17 cm in height. The IP20 rating provides basic protection against contact and solid foreign objects.

Tehnilised andmed

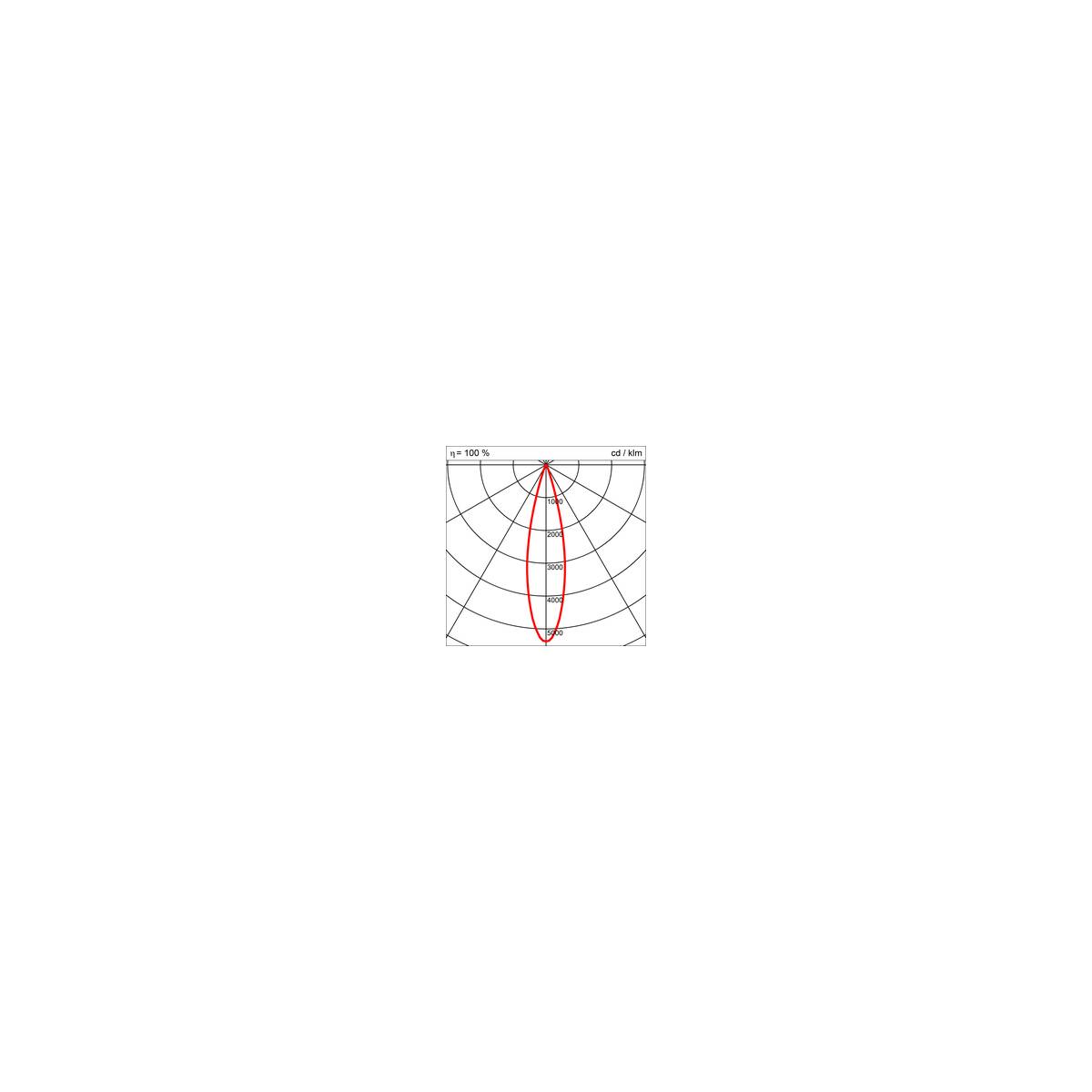

Half beam angle	36 °
Colour	black
Colour temperature	2700 Kelvin
Luminous Flux	2300 lm
electrical power	20 W
CRI	90
Net weight	1.093 kg
Diameter	10 cm
Height	17 cm
Length	21.3 cm
IP Code	IP20
Service life	50000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	500 mA
Dimming options	Trailing edge
Shape	cylindrical
Horizontal rotation range	350 °
Variant Dimm options	Trailing edge
Different light outlets	1
Seperate beams	Yes
Vertical tilting range	90 °
Ambient temperature	-20 °C
Berker 2873 Result	With restrictions
Material	Aluminium
UGR ≤	16
LED can be changed	Control gear replaceable by a professional
Product name	NUMINOS® L
CCT Switch	No
DALI capable	No
Dimmable	Yes
Assembly	Track
Risk group	1
Busch-Jäger 6523U Result	Compatible
Eltako EUD 61 NPN-UC Result	Compatible
Jung 224 LED UDD Result	Compatible
Legrand PRO21 LED Dimmer 775659 Result	Compatible
LK Fuga LED Dimmer 180 Touch Result	Compatible
Merten MEG5134-0000 Result	Compatible
Niko 310-0190X Result	Compatible
SLV 470807 Result	Compatible
Tehnilised failid	Manual Datasheet CE declaration Removal instructions REACh
Kategooriad	3-Phase-System, High voltage track systems, Indoor, LED, Other light source, Track systems
Sildid	LED power track spotlight, LED shop lighting, Shop lighting, TRIAC
