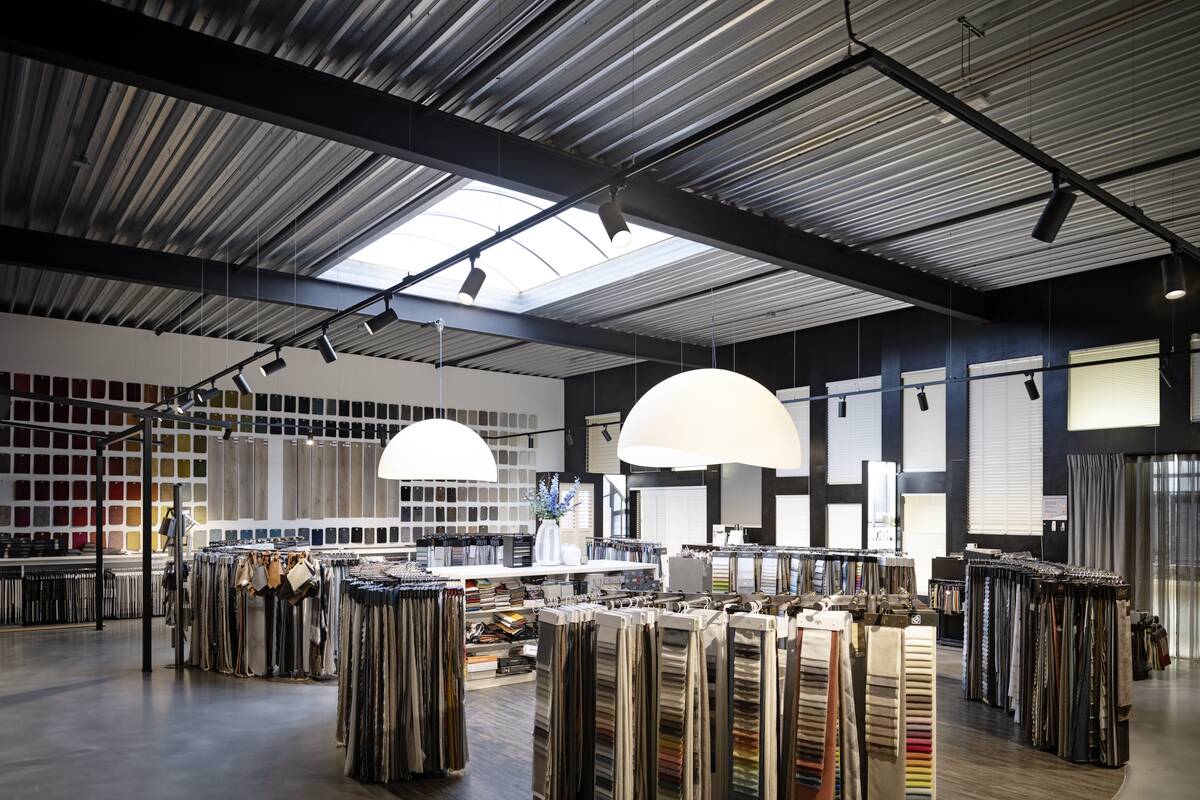

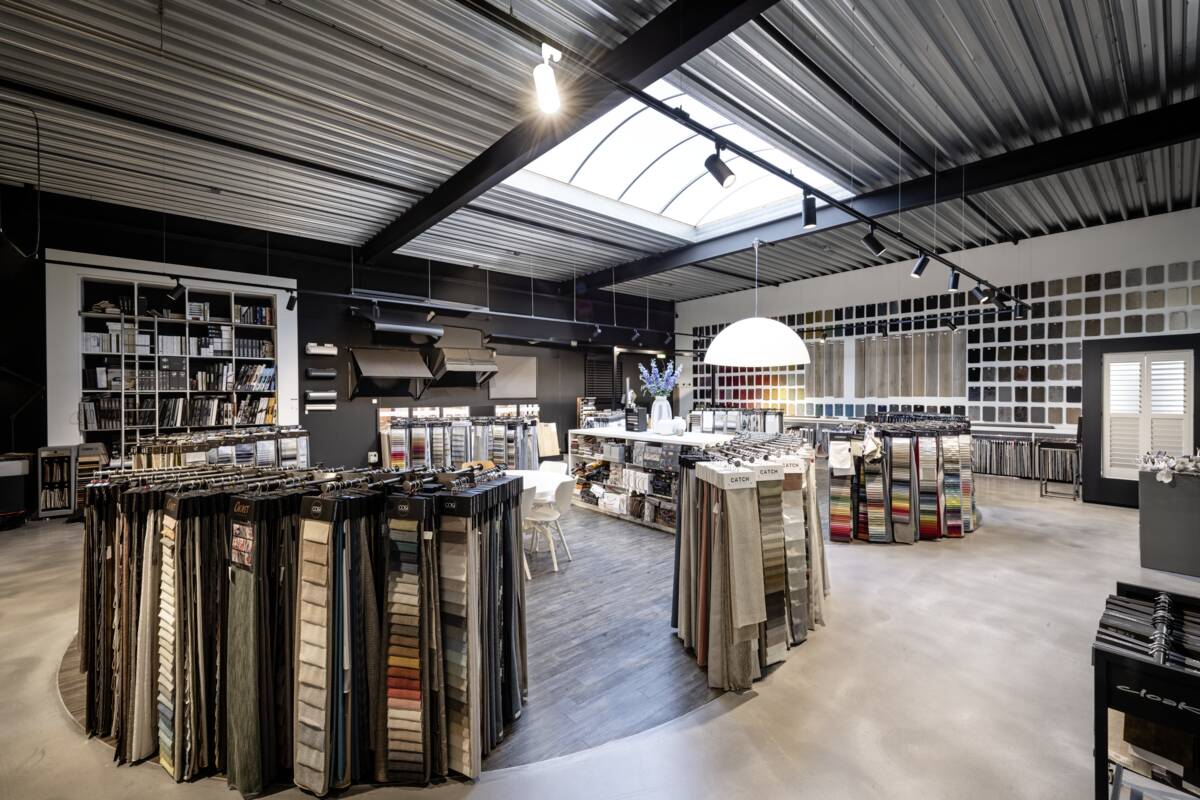

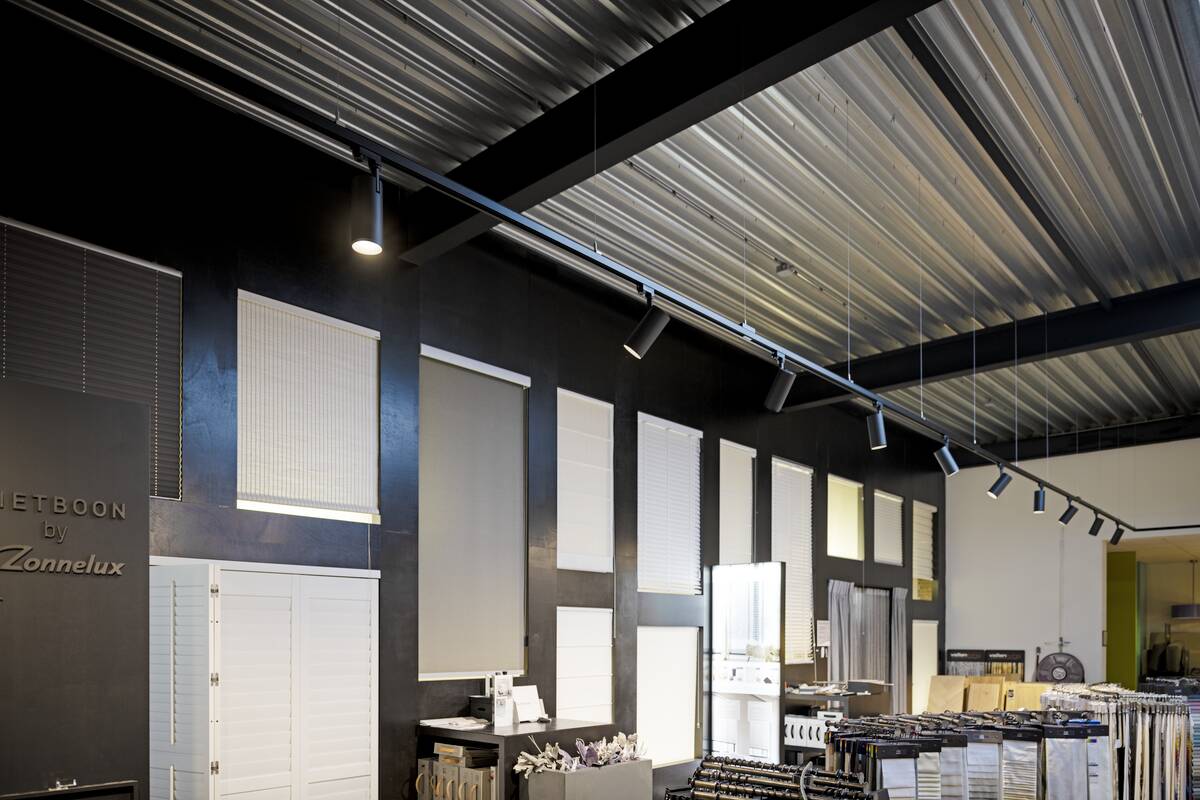

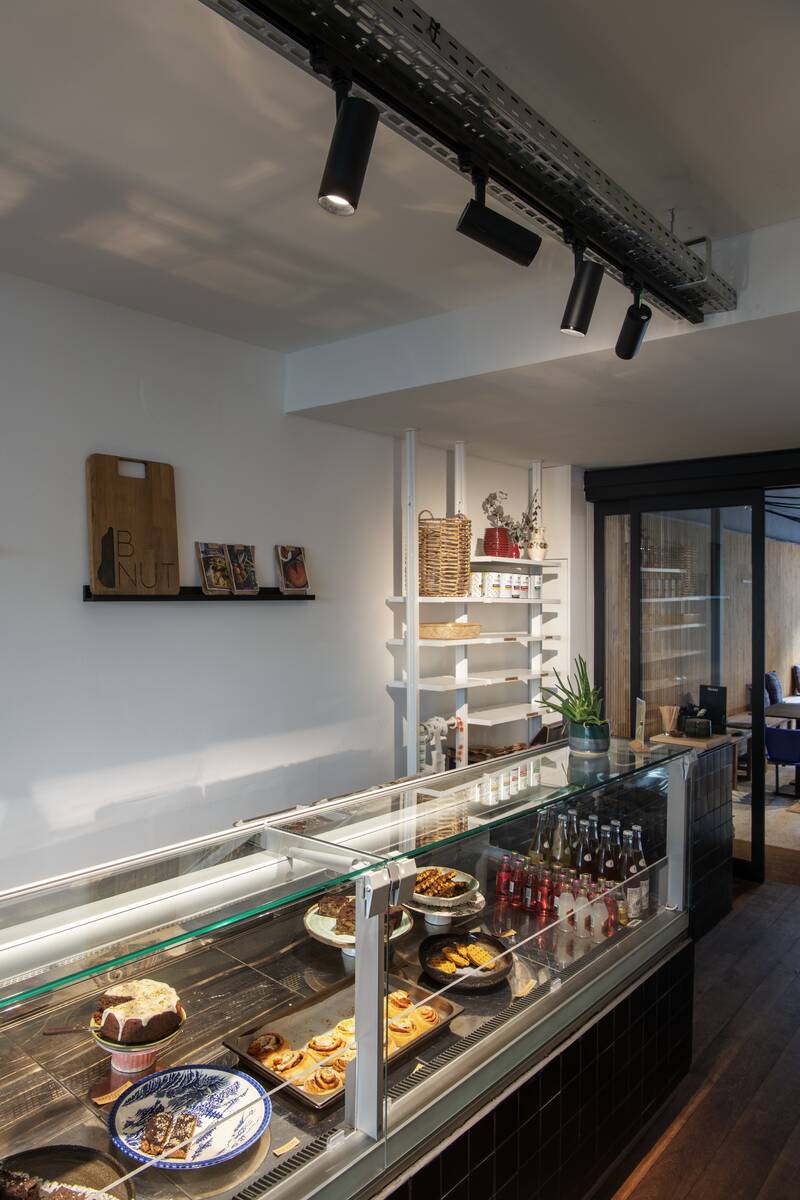

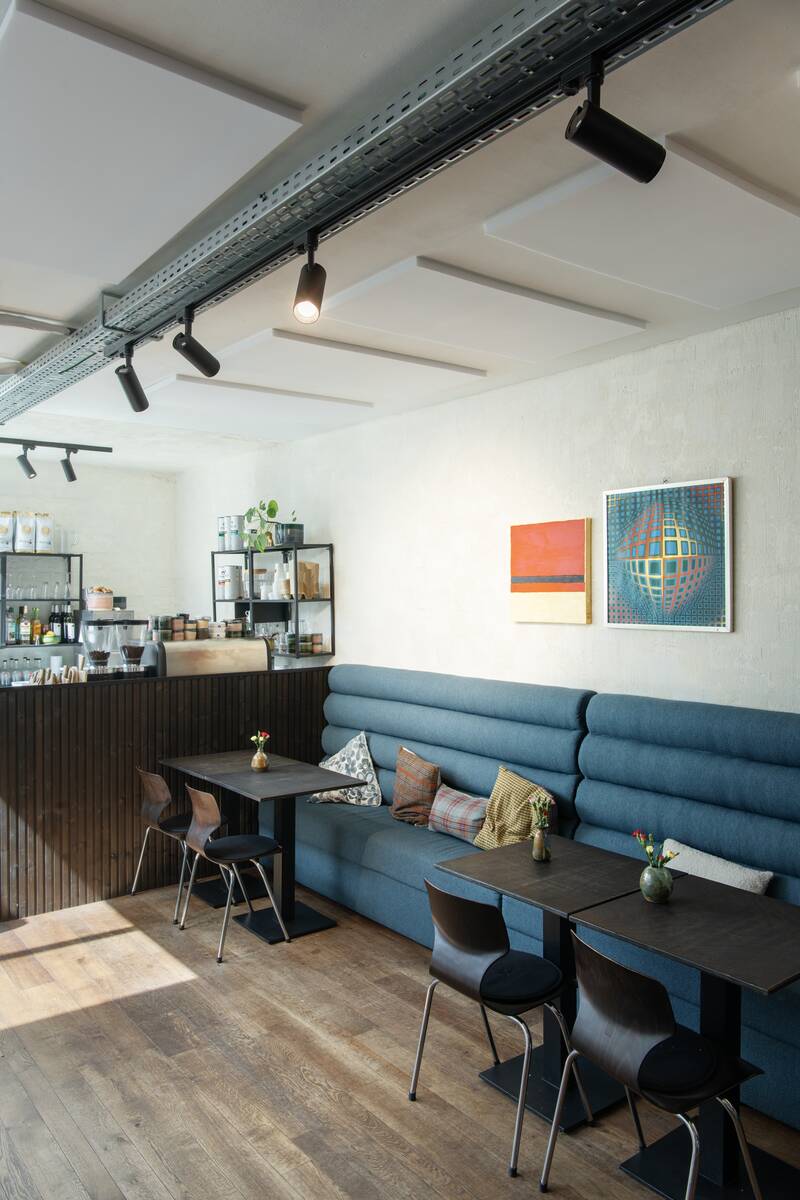

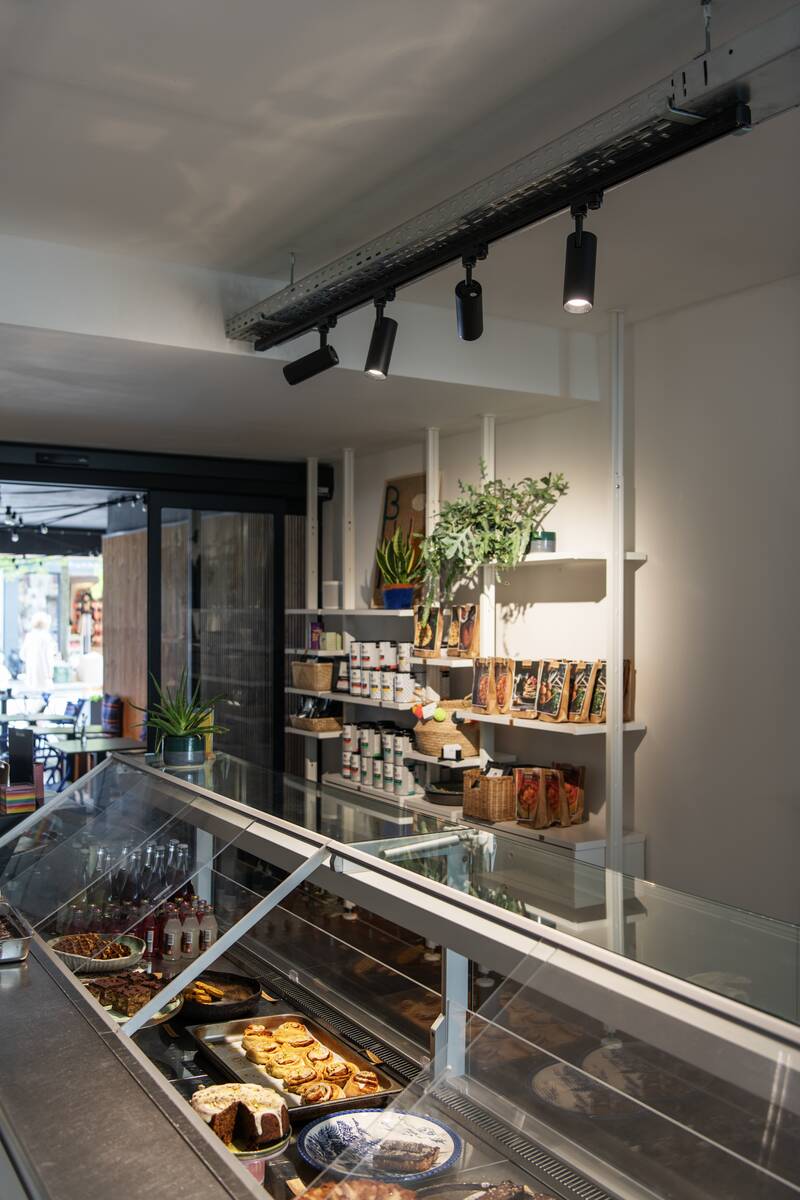

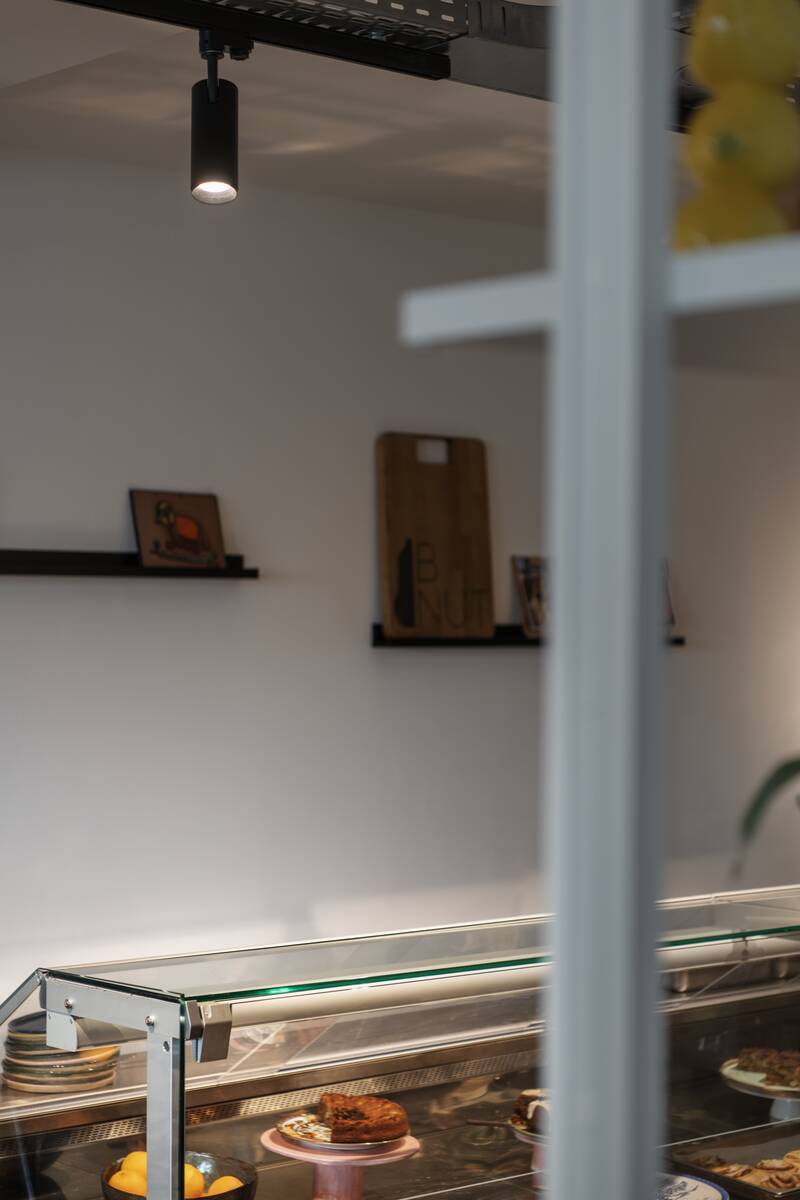

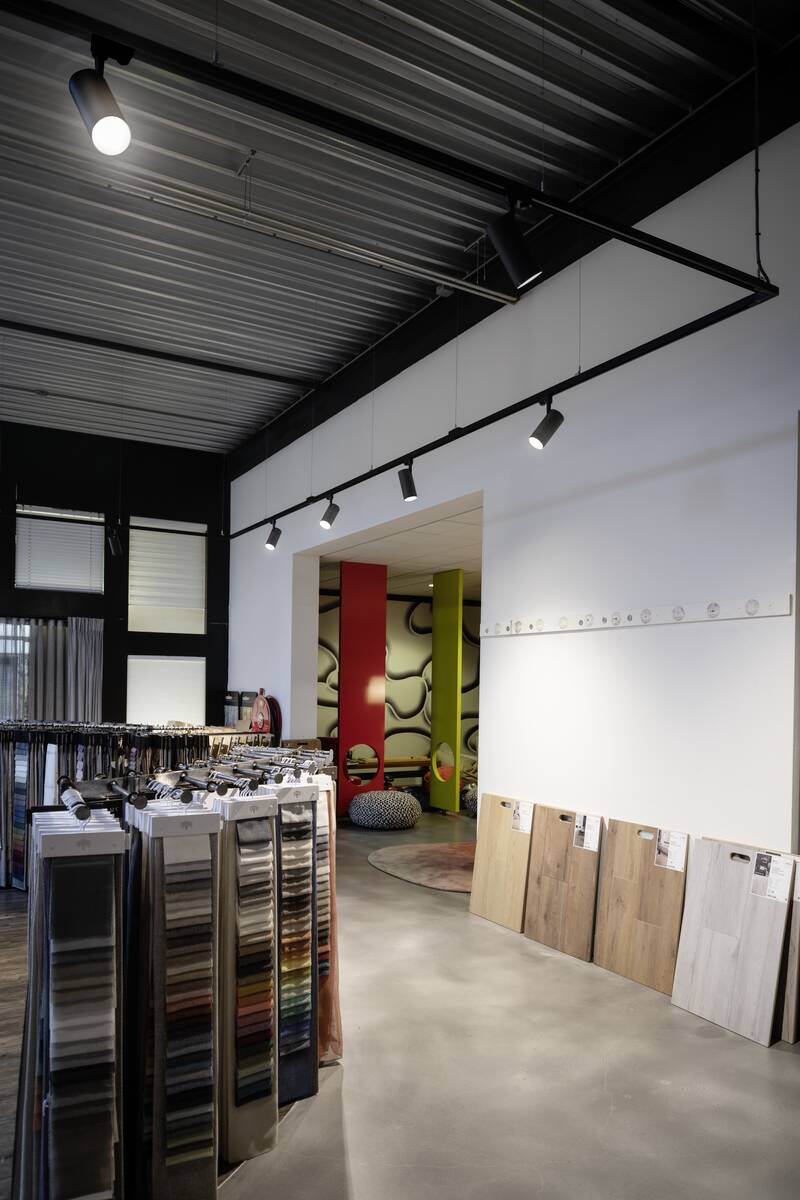

The NUMINOS® S 3Ph. DALI 3~ Spot is a cylindrical spotlight designed for mounting on ceiling or wall track systems. It is suitable for indoor use, for example in exhibition or retail areas. With a luminous flux of 1050 lumens at 7.8 watts and a colour temperature of 3000 Kelvin, it provides directed illumination with a beam angle of 36°. The housing is made of aluminium and finished in matte black. The luminaire features DALI 2 and touch dimming functions, allowing flexible light control. The spot measures 16.2 cm in length, has a diameter of 6.5 cm, and a height of 14.5 cm. The protection rating is IP20, making it suitable for dry indoor environments. The declared service life is 50,000 hours.

Tehnilised andmed

Half beam angle	36 °
Colour	black
Colour temperature	3000 Kelvin
Luminous Flux	1050 lm
electrical power	7,8 W
CRI	90
Net weight	0.569 kg
Diameter	6.5 cm
Height	14.5 cm
Length	16.2 cm
IP Code	IP20
Service life	50000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	200 mA
Dimming options	DALI and Touch
Shape	cylindrical
Horizontal rotation range	350 °
Variant Dimm options	DALI and Touch
Different light outlets	1
Seperate beams	Yes
Vertical tilting range	90 °
Ambient temperature	-20 °C
Material	Aluminium
UGR ≤	16
LED can be changed	Control gear replaceable by a professional
Product name	NUMINOS® S
CCT Switch	No
DALI capable	Yes
Dimmable	Yes
Assembly	Track
Risk group	1
