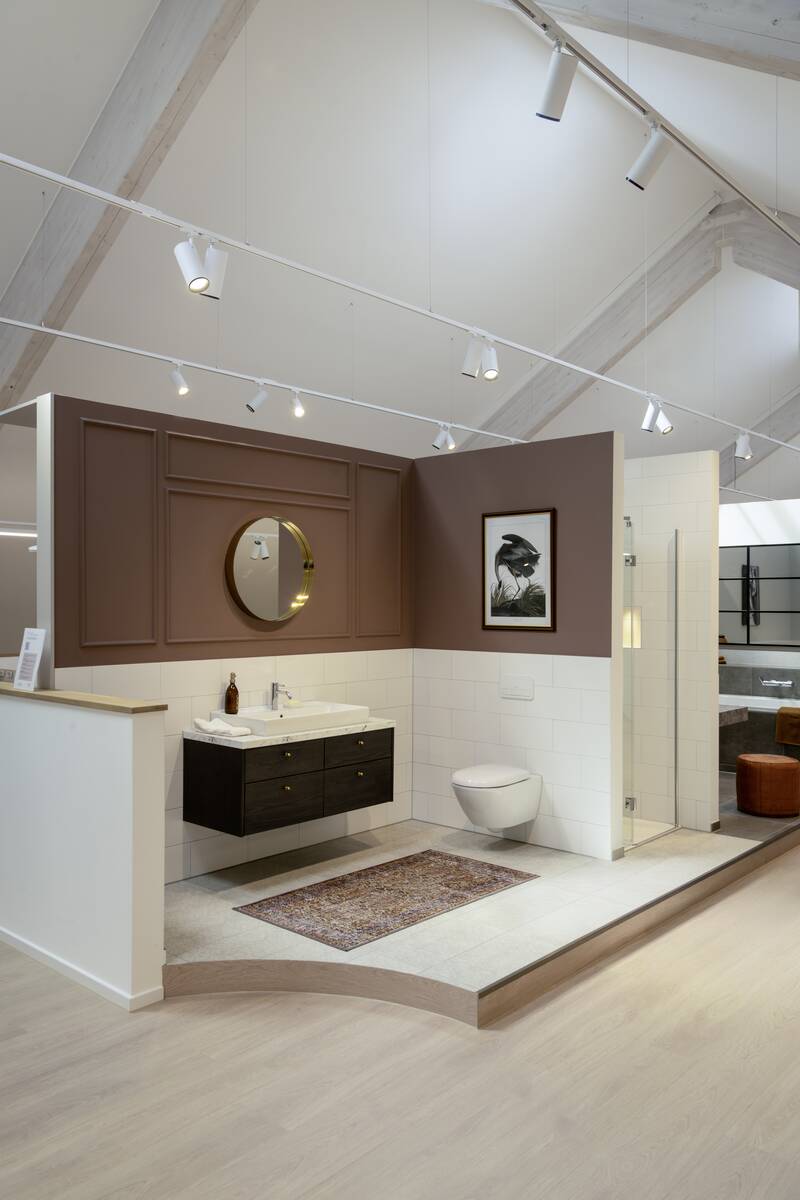

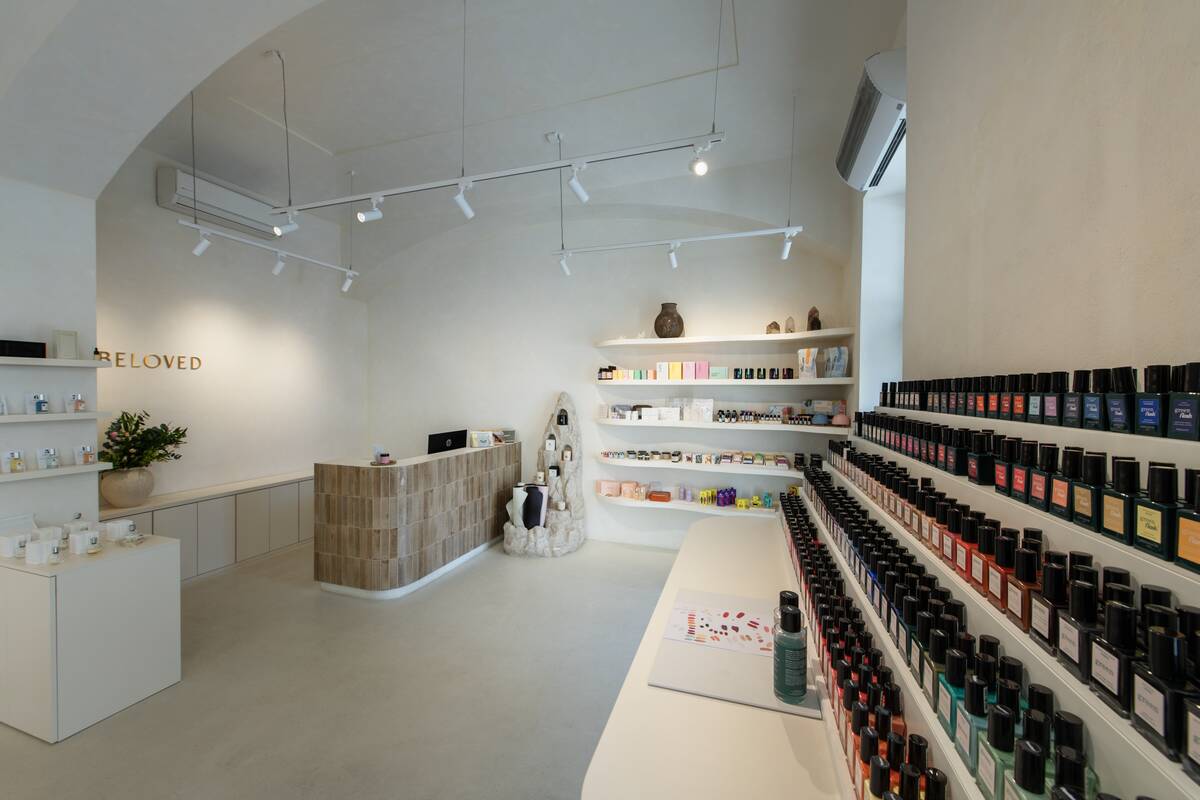

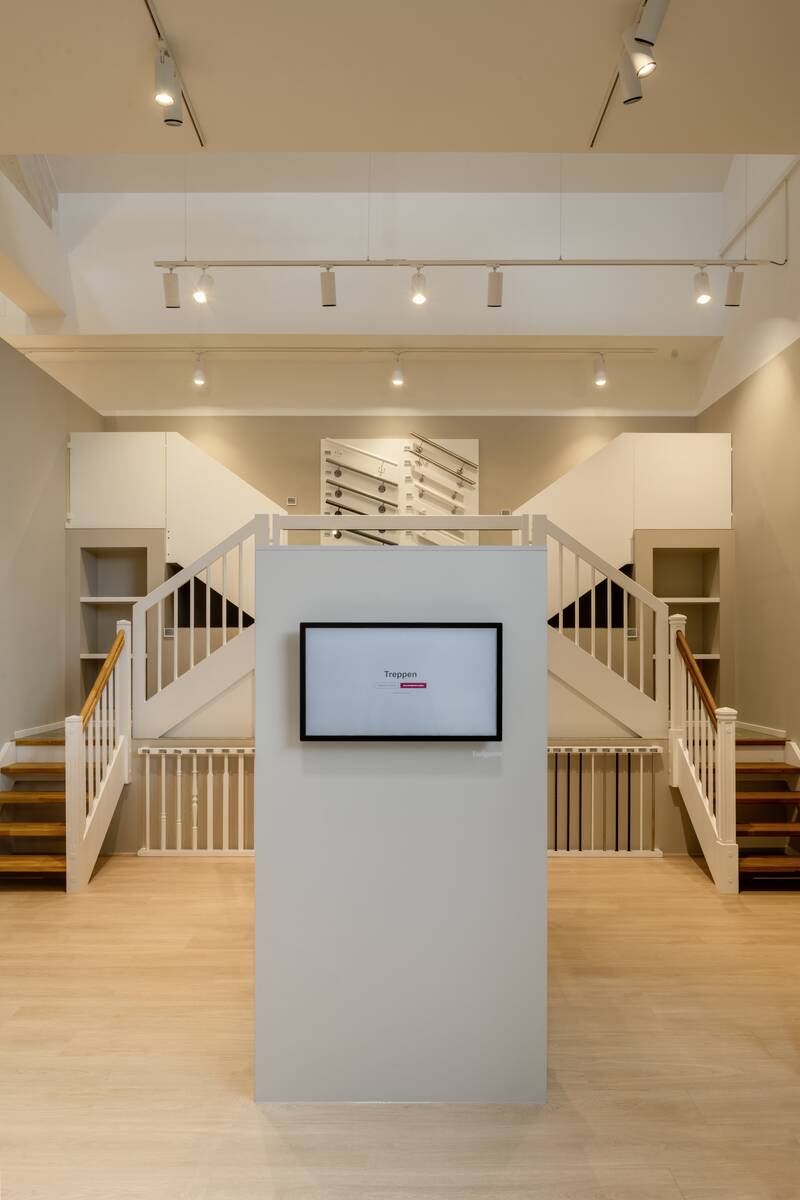

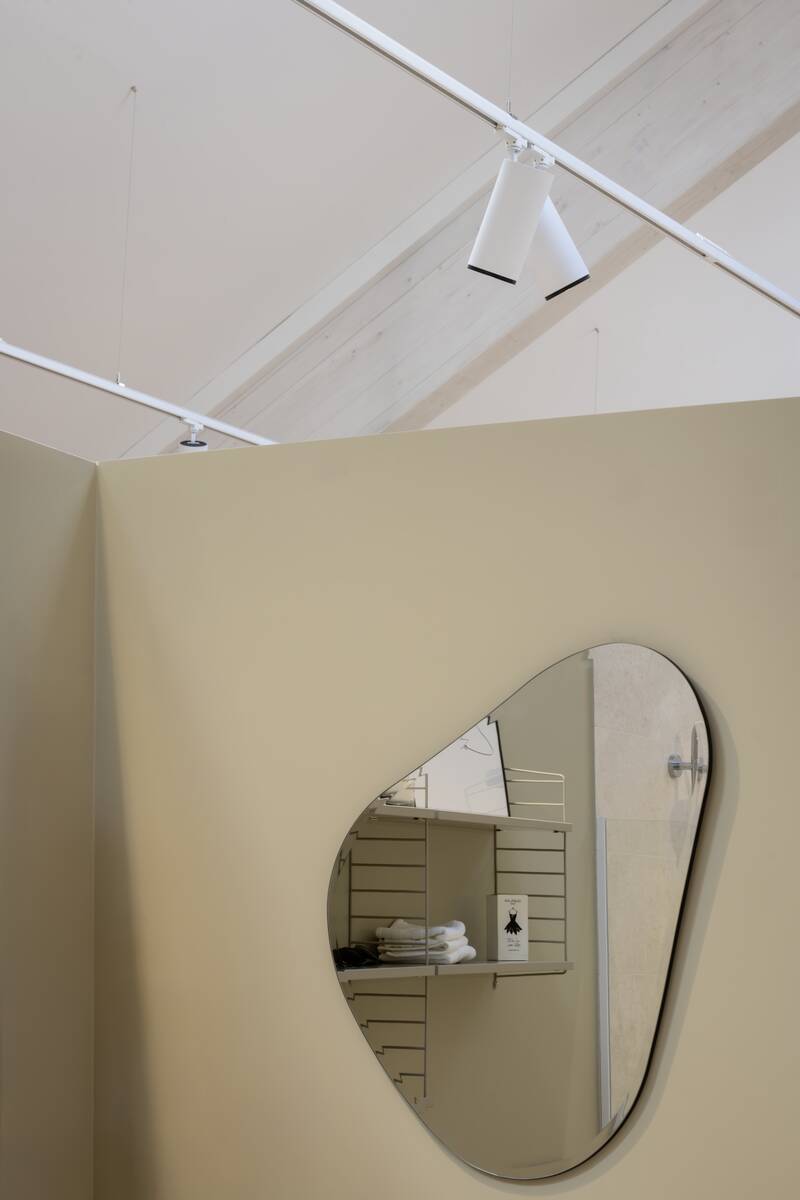

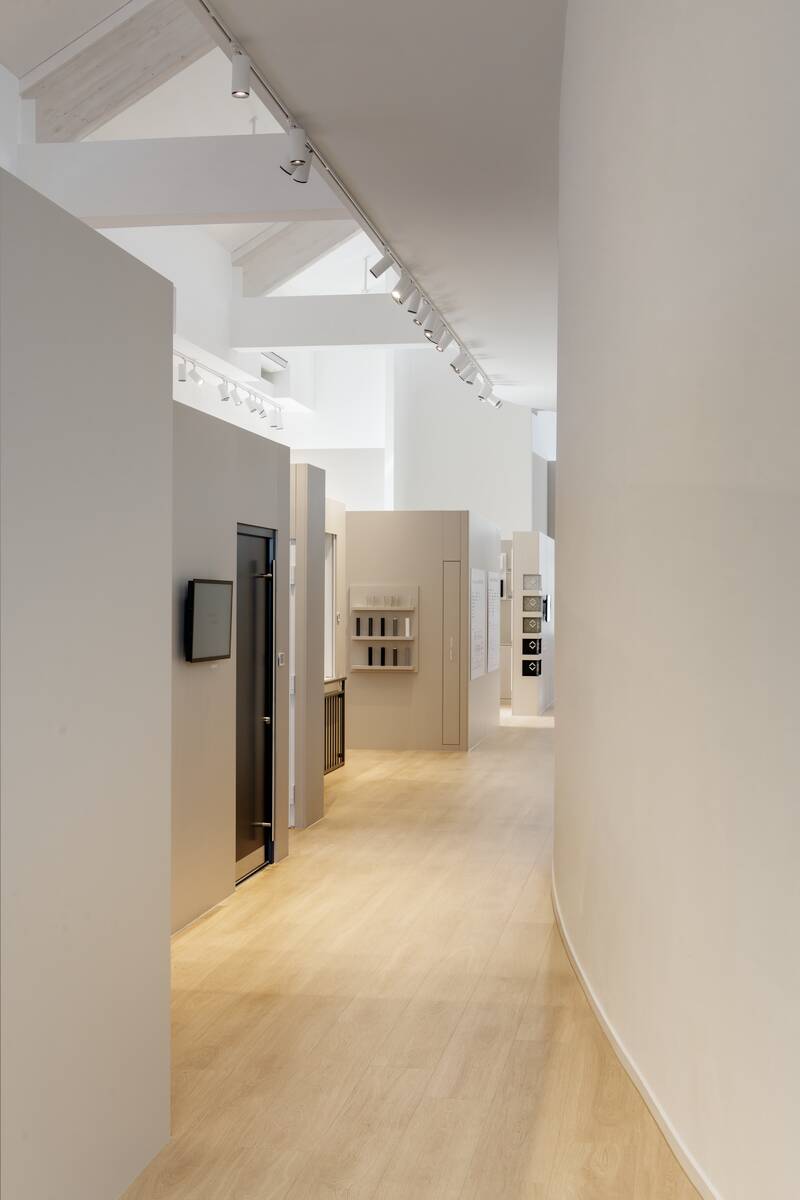

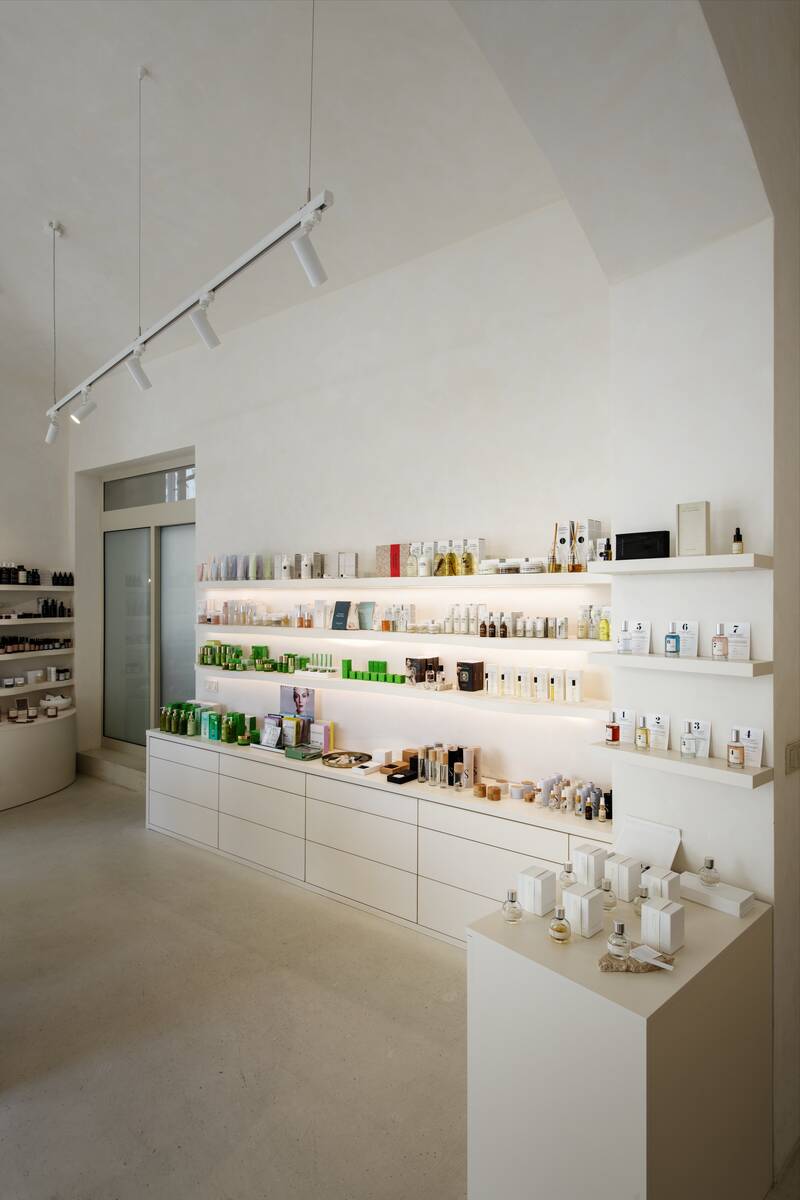

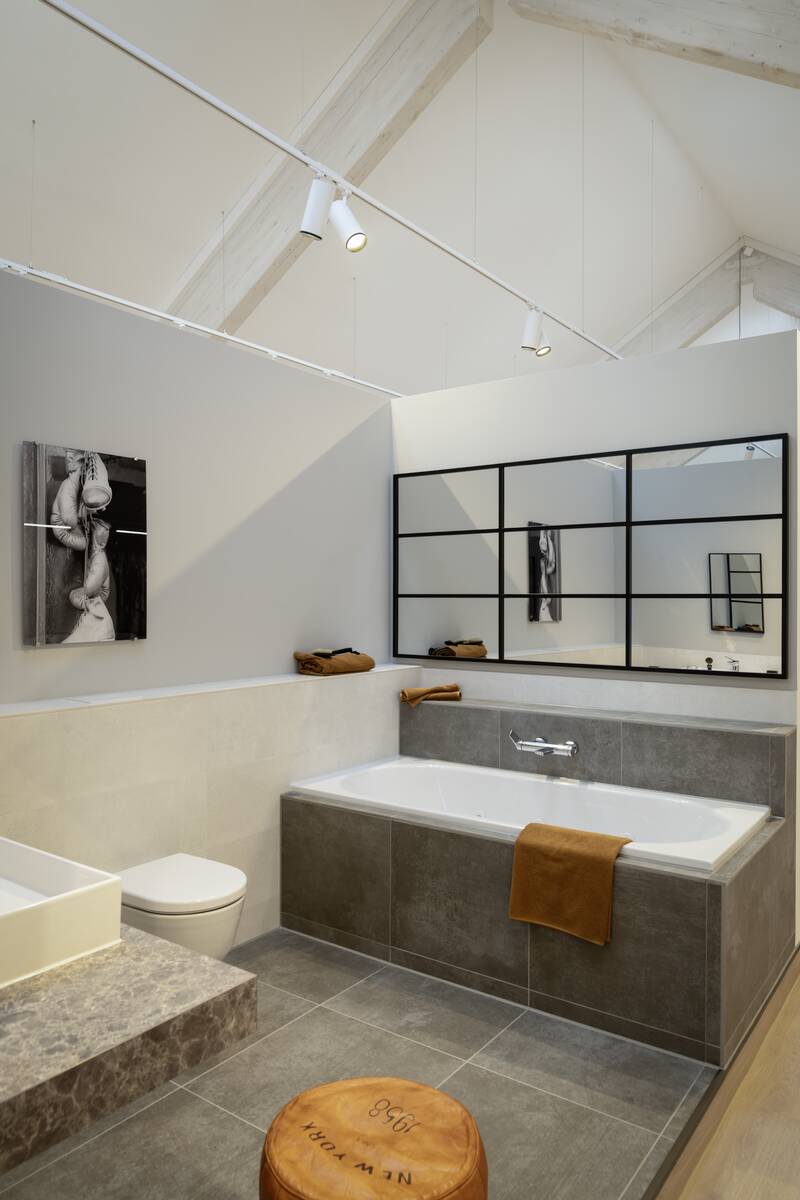

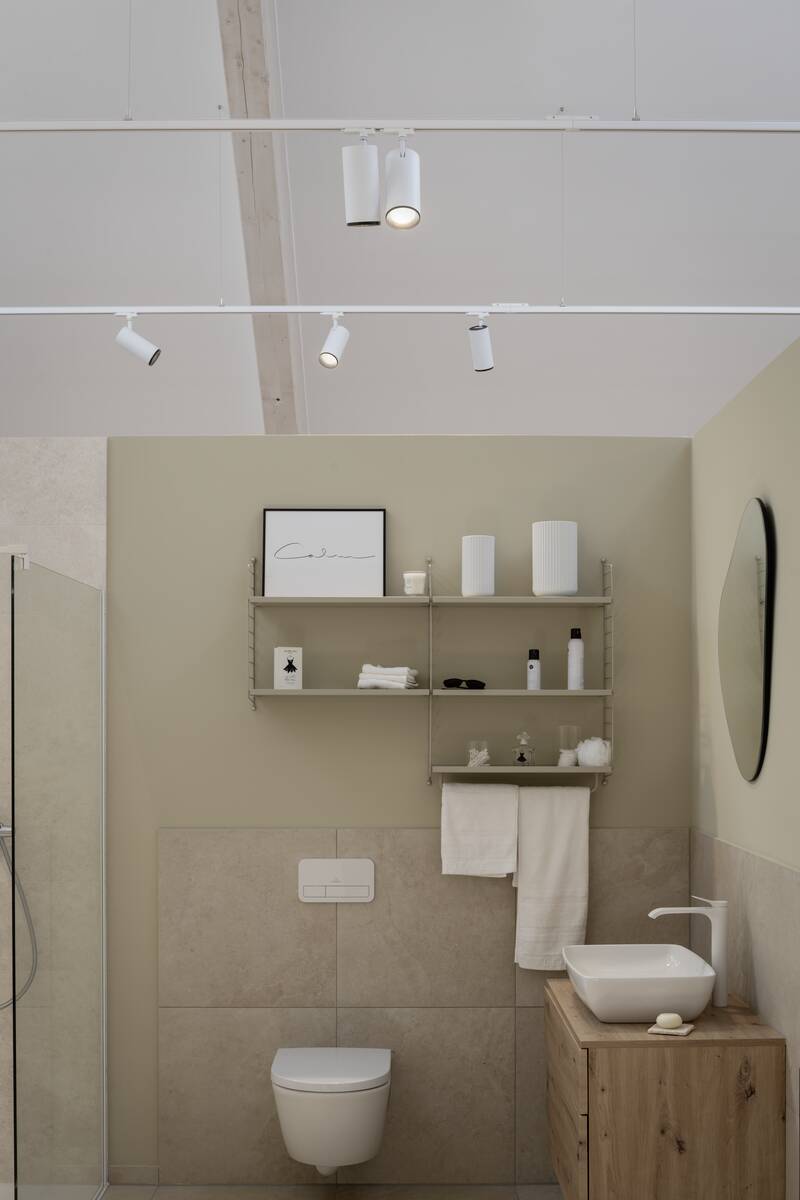

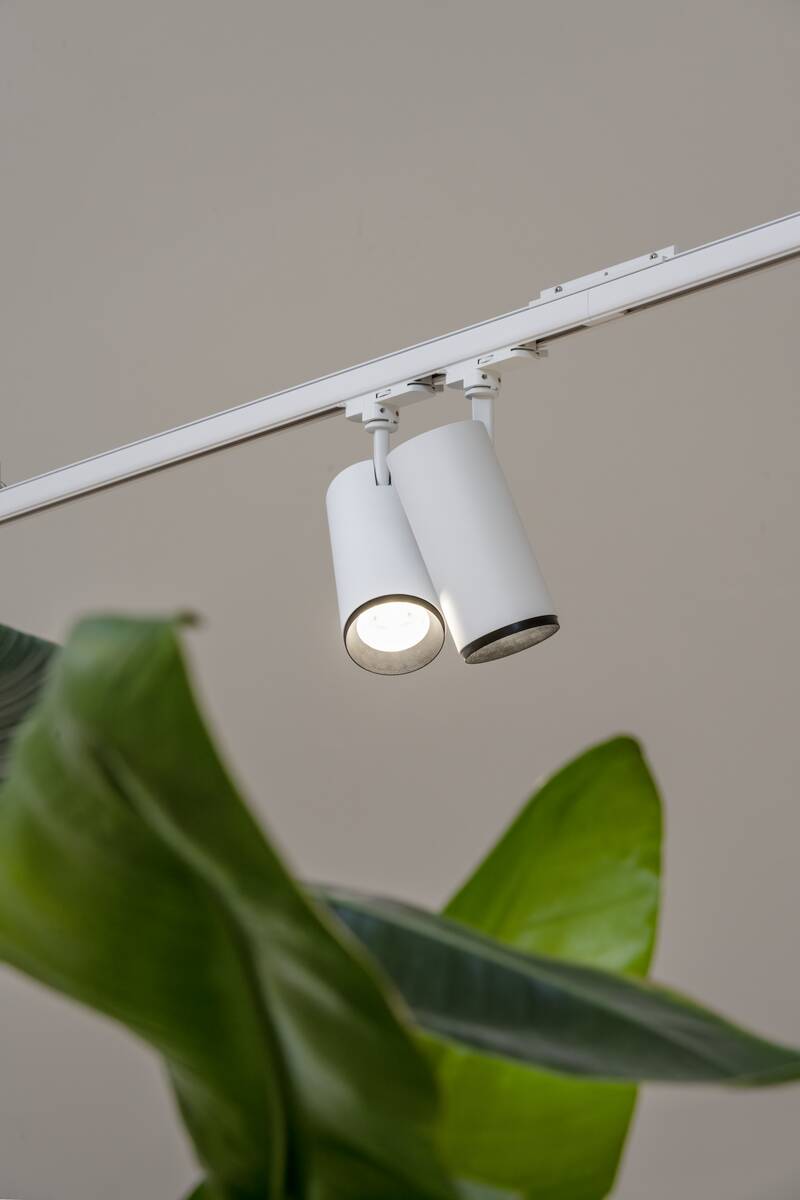

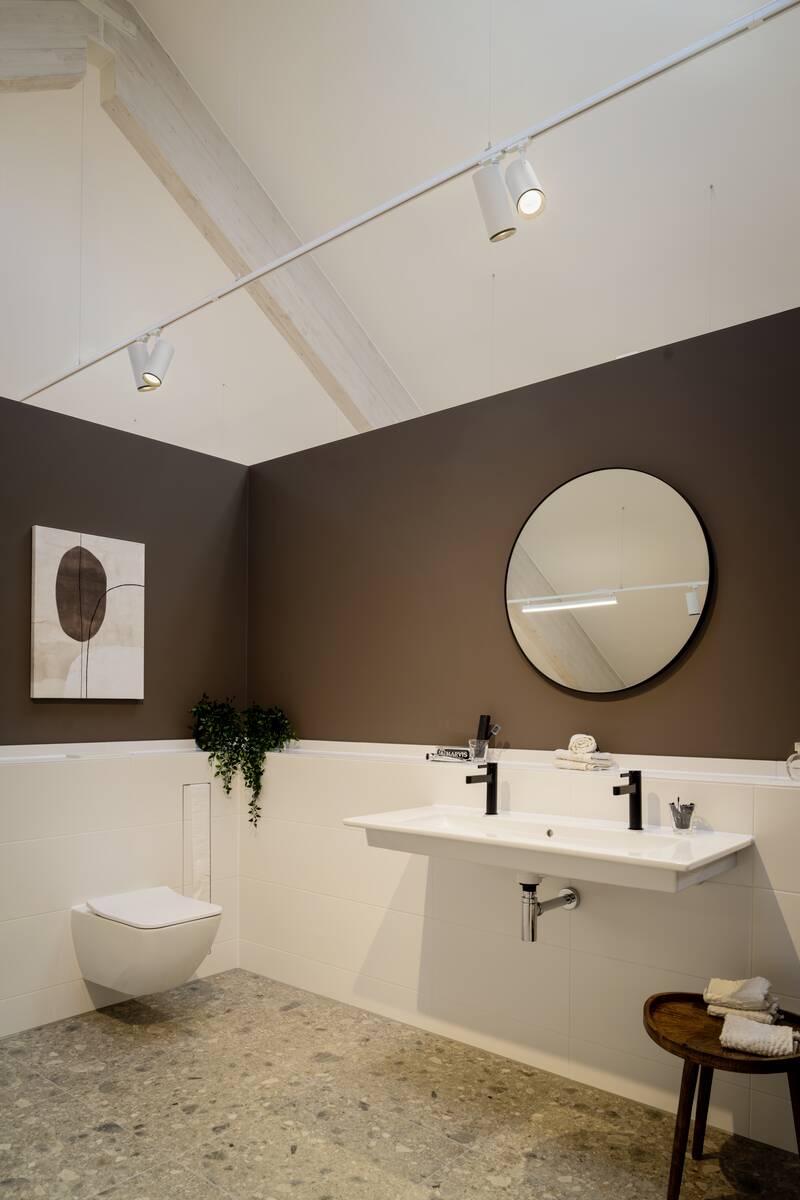

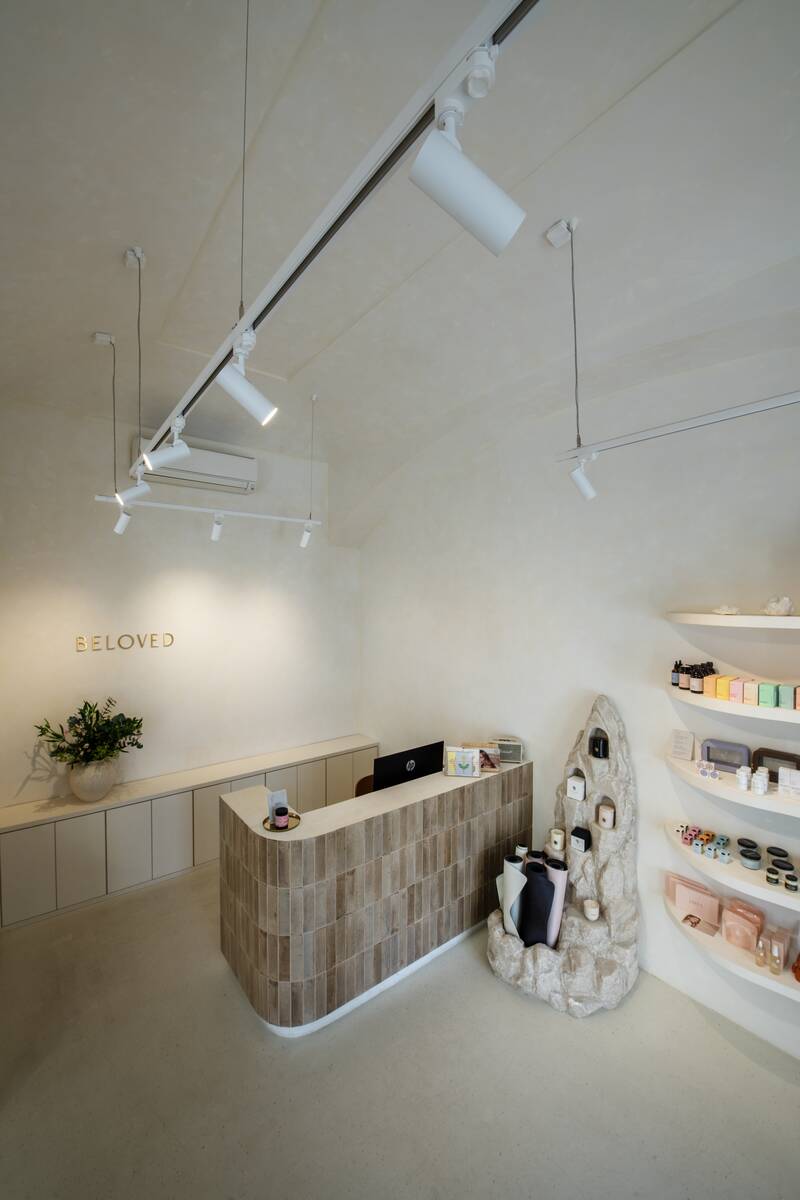

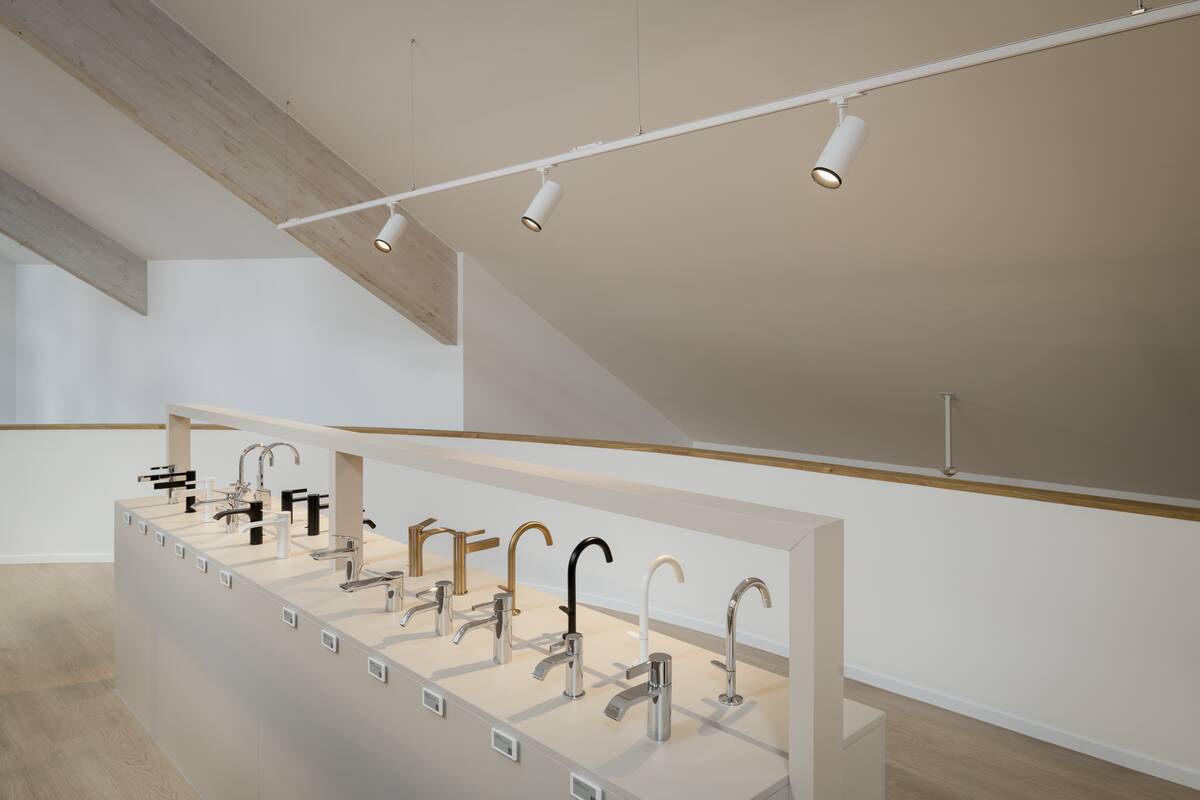

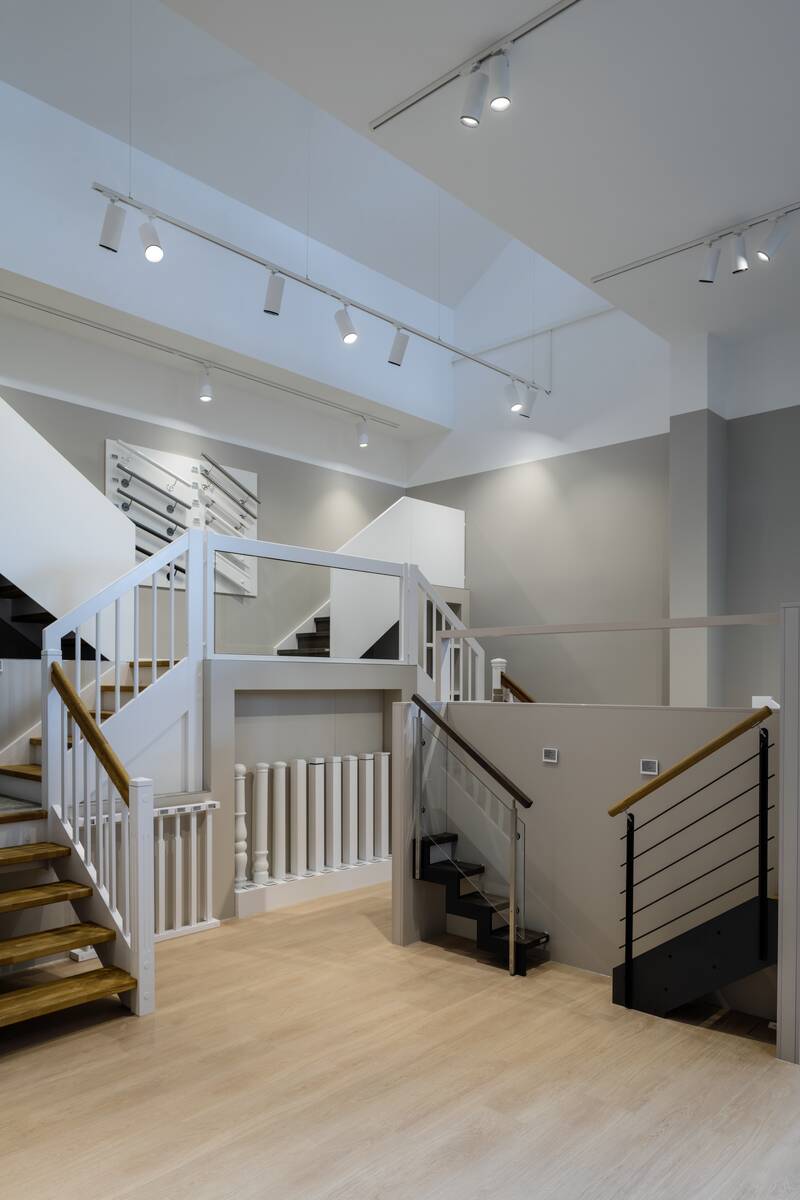

The NUMINOS® M 3Ph. spot is a cylindrical 3-phase spotlight designed for mounting on ceiling track systems. It is particularly suitable for indoor use, for example in commercial or exhibition areas. With a luminous flux of 1800 lumens at 13 watts and a colour temperature of 3000 K, it provides a focused light distribution with a beam angle of 24°. The housing is made of aluminium and is available in matt white or matt black. The spotlight features DALI-2 dimming as well as touch dimming technology for flexible light control. The IP20 protection rating safeguards the device against contact and solid foreign objects. With a length of 18.5 cm, a diameter of 8.5 cm, and a height of 16.5 cm, the spot is compactly sized. The declared service life is 50,000 hours.

Tehnilised andmed

Half beam angle	24 °
Colour	white
Colour temperature	3000 Kelvin
Luminous Flux	1800 lm
electrical power	13 W
CRI	90
Net weight	0.833 kg
Diameter	8.5 cm
Height	16.5 cm
Length	18.5 cm
IP Code	IP20
Service life	50000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	350 mA
Dimming options	DALI and Touch
Shape	cylindrical
Horizontal rotation range	350 °
Variant Dimm options	DALI and Touch
Different light outlets	1
Seperate beams	Yes
Vertical tilting range	90 °
Ambient temperature	-20 °C
Material	Aluminium
UGR ≤	16
LED can be changed	Control gear replaceable by a professional
Product name	NUMINOS® M
CCT Switch	No
DALI capable	Yes
Dimmable	Yes
Assembly	Track
Risk group	1
Tehnilised failid	Manual Datasheet CE declaration Removal instructions REACh
