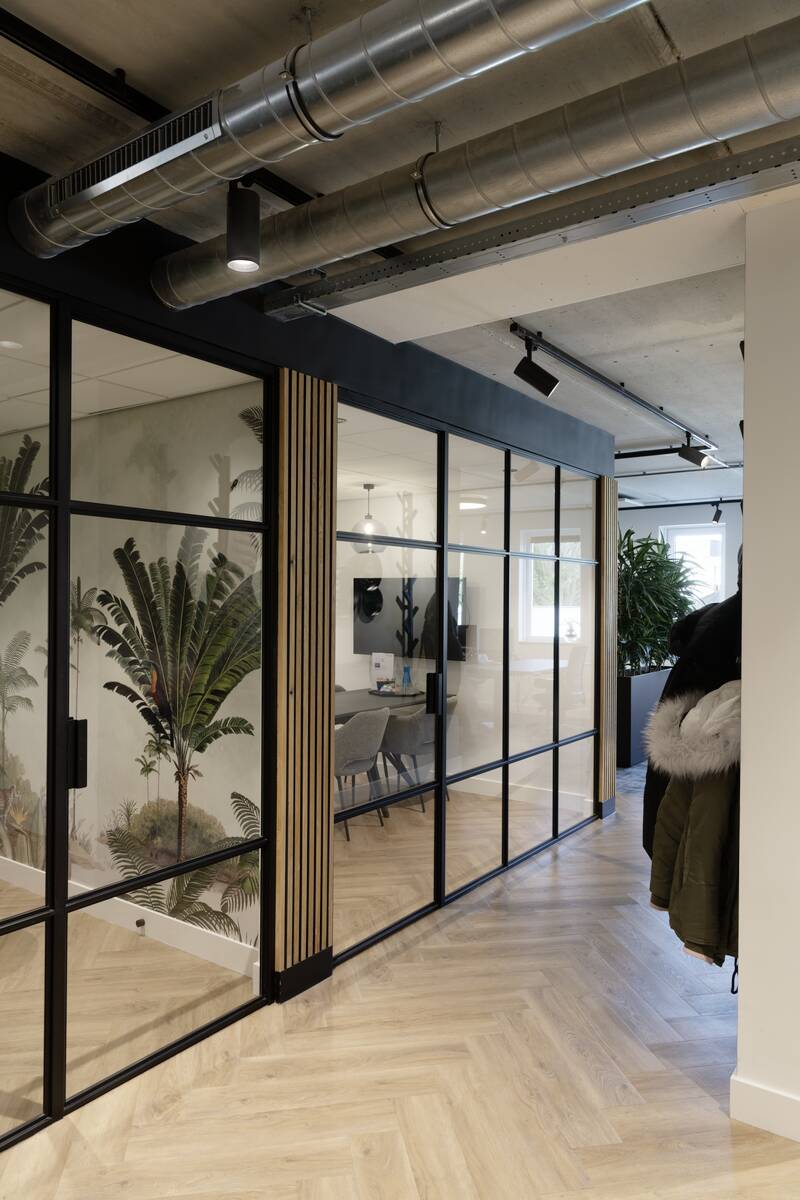

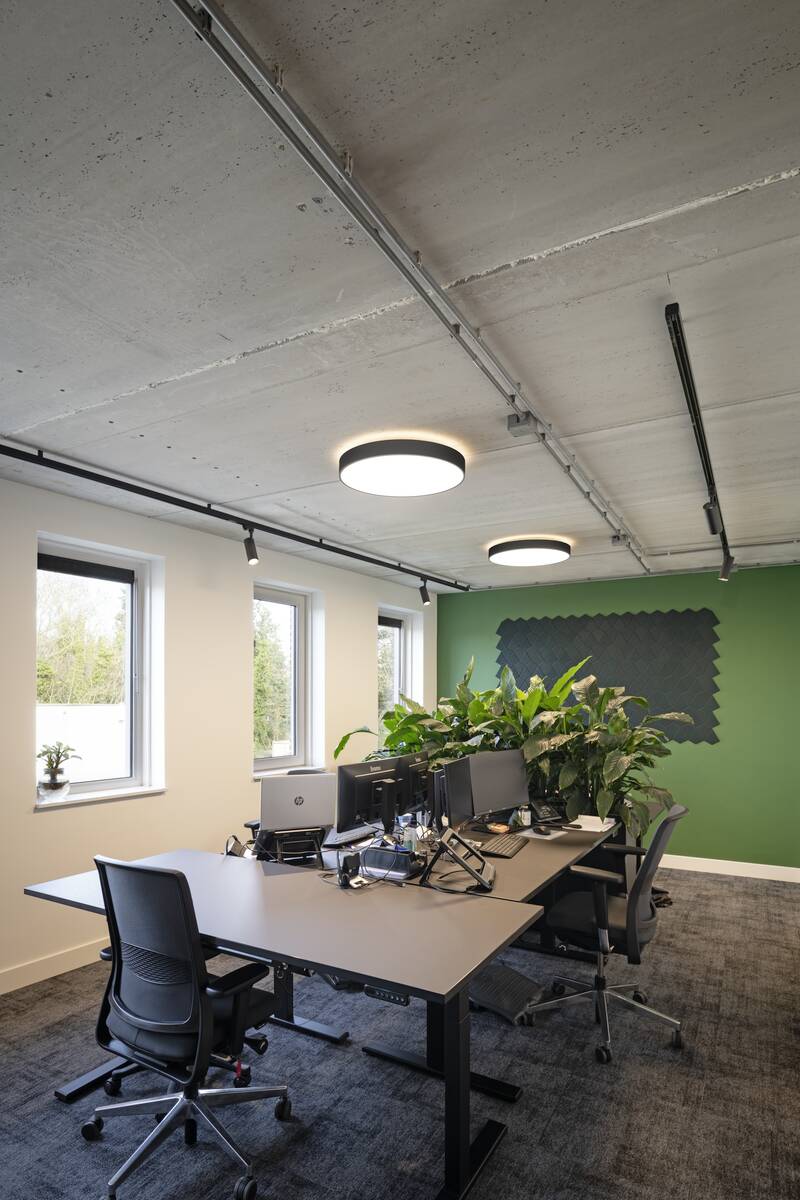

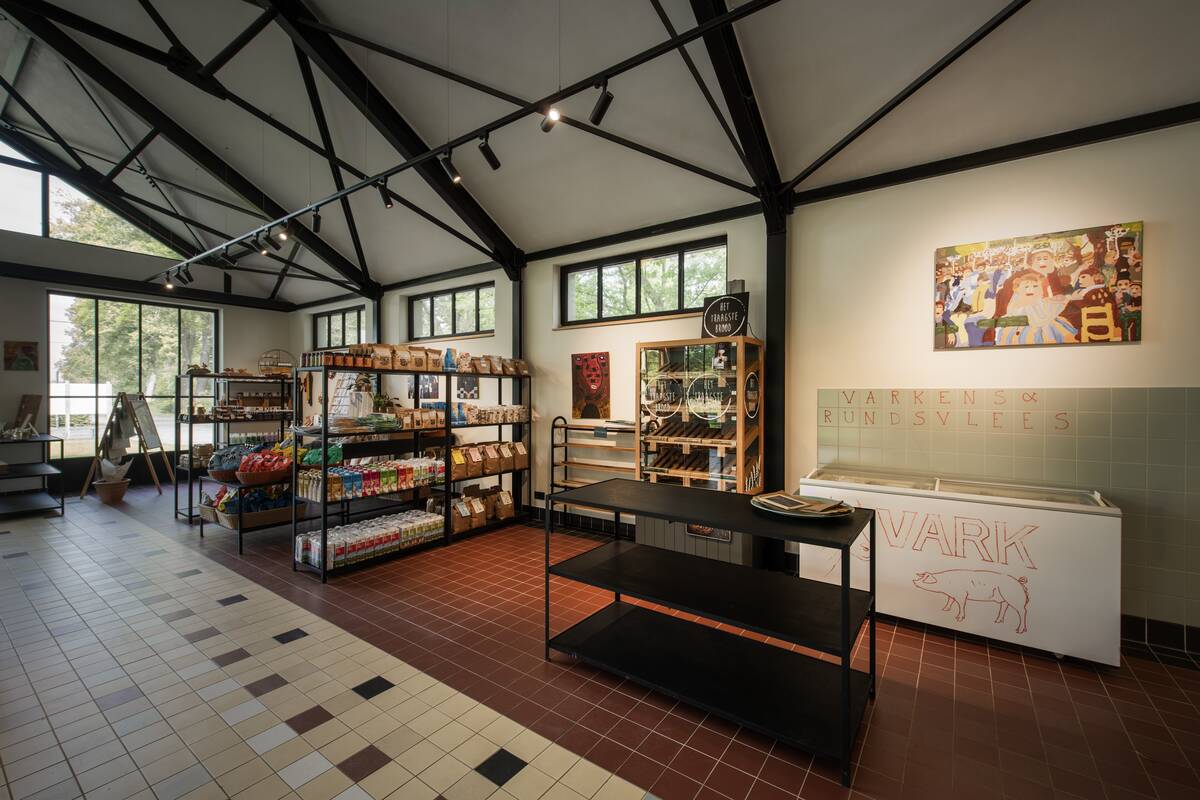

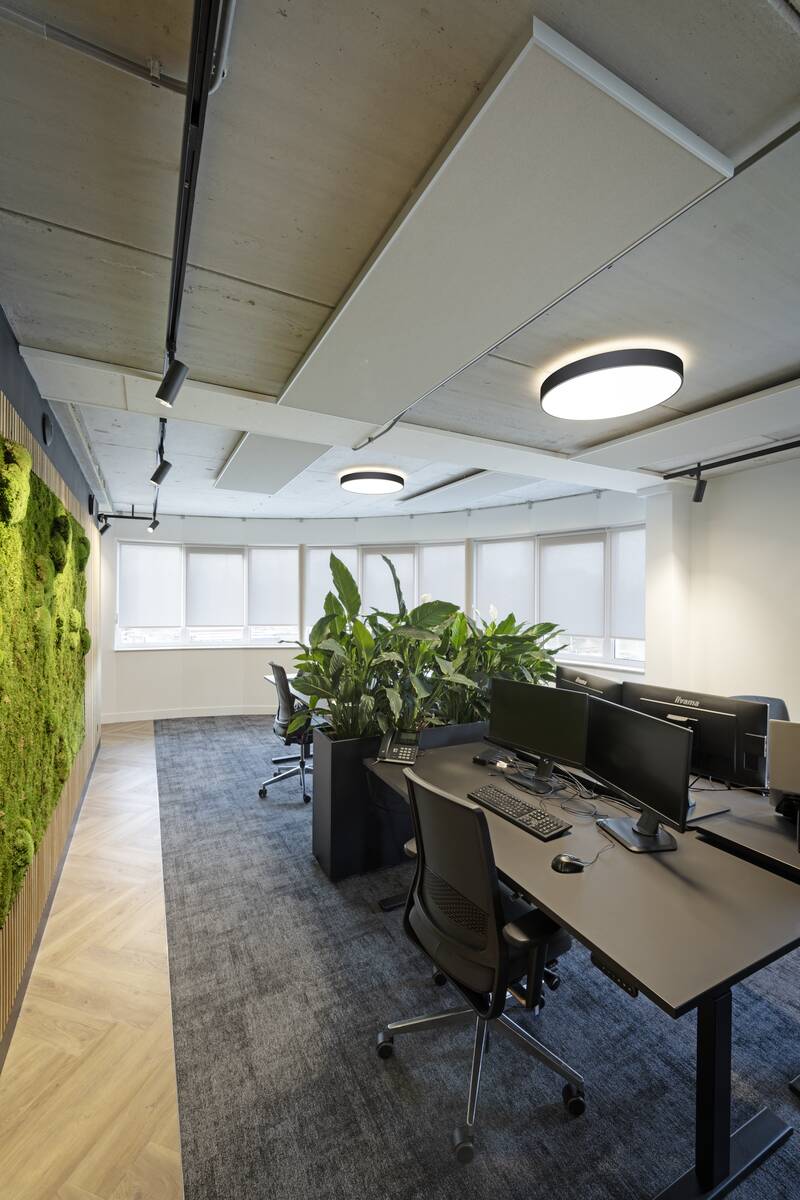

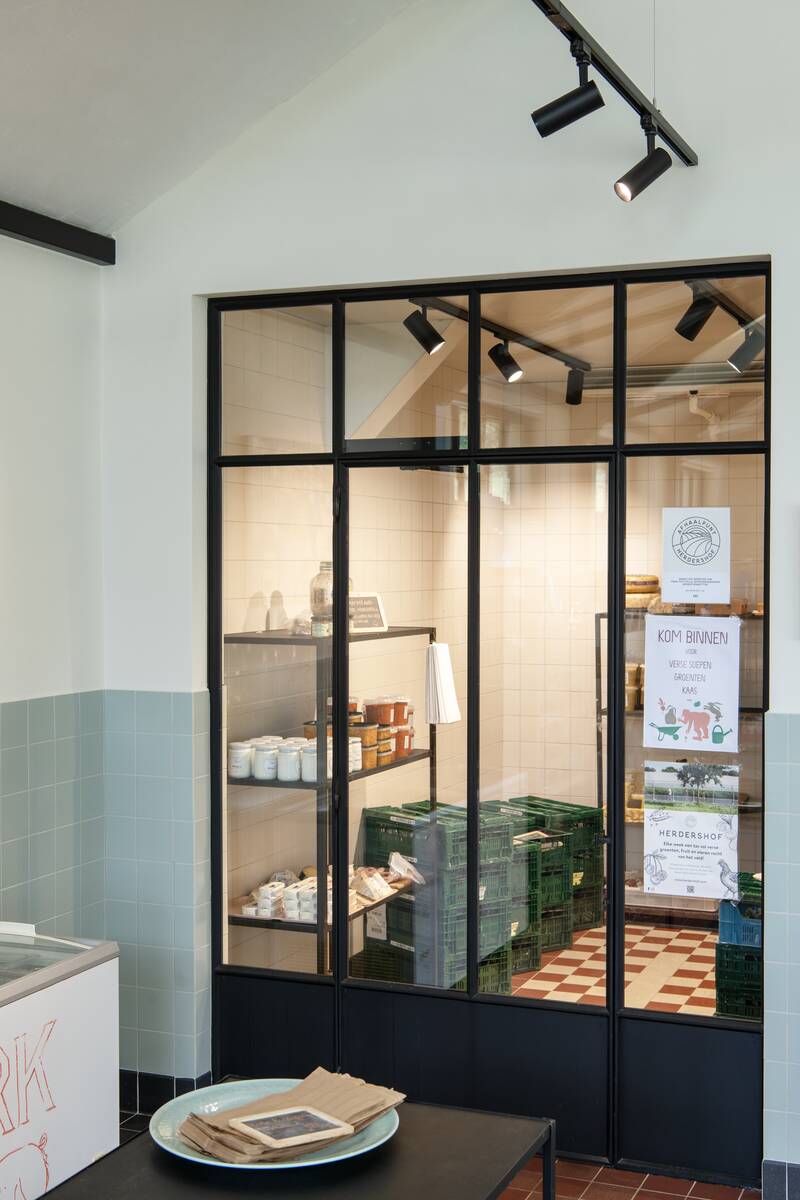

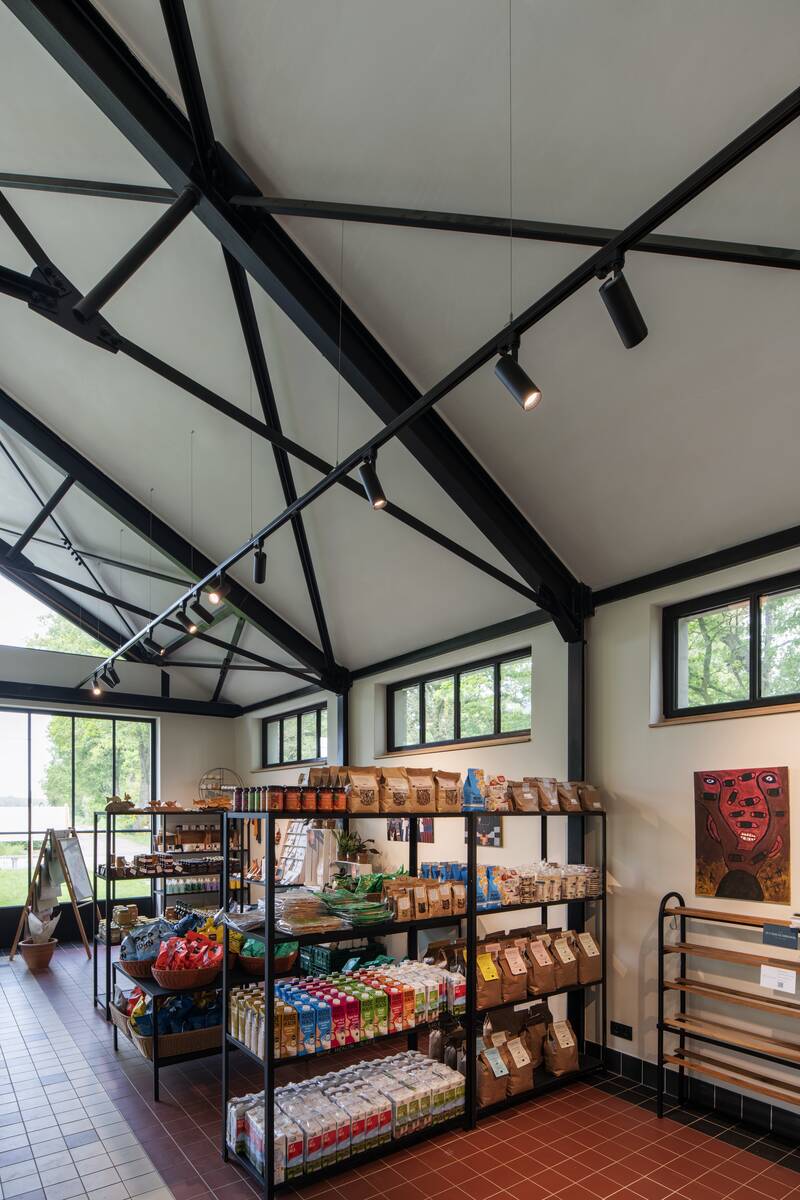

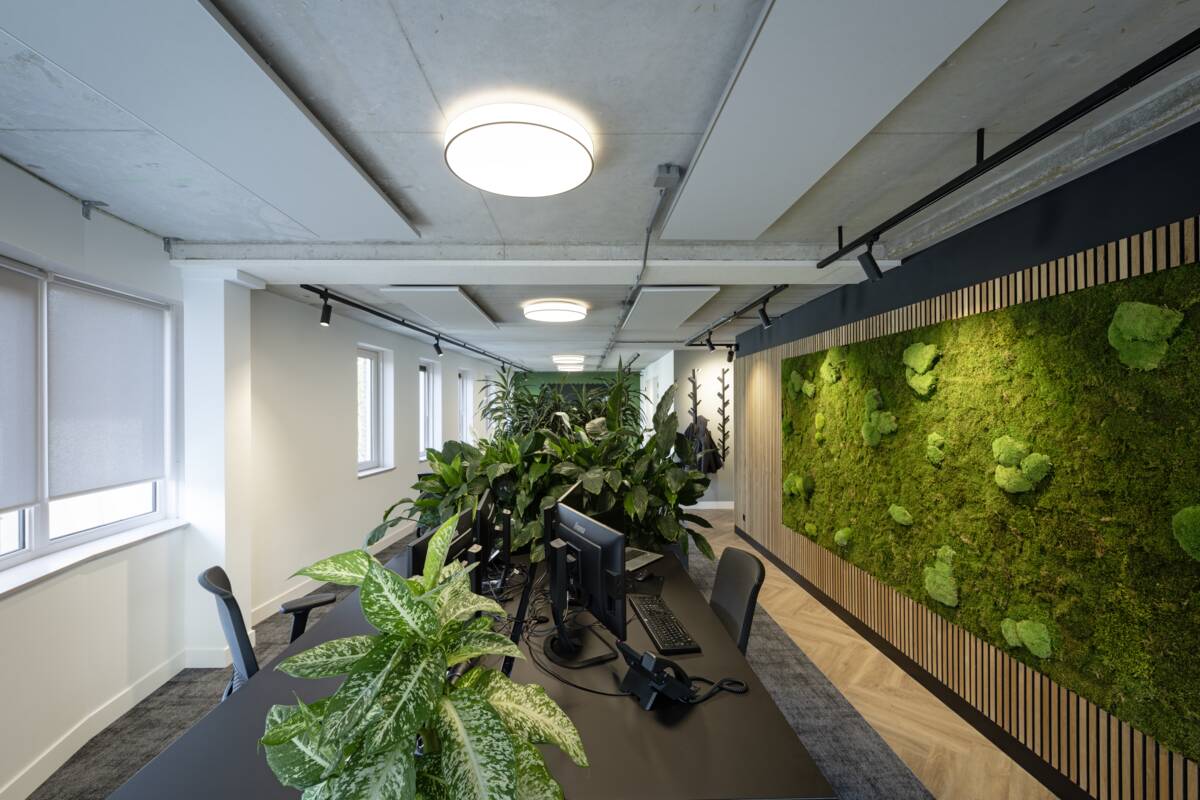

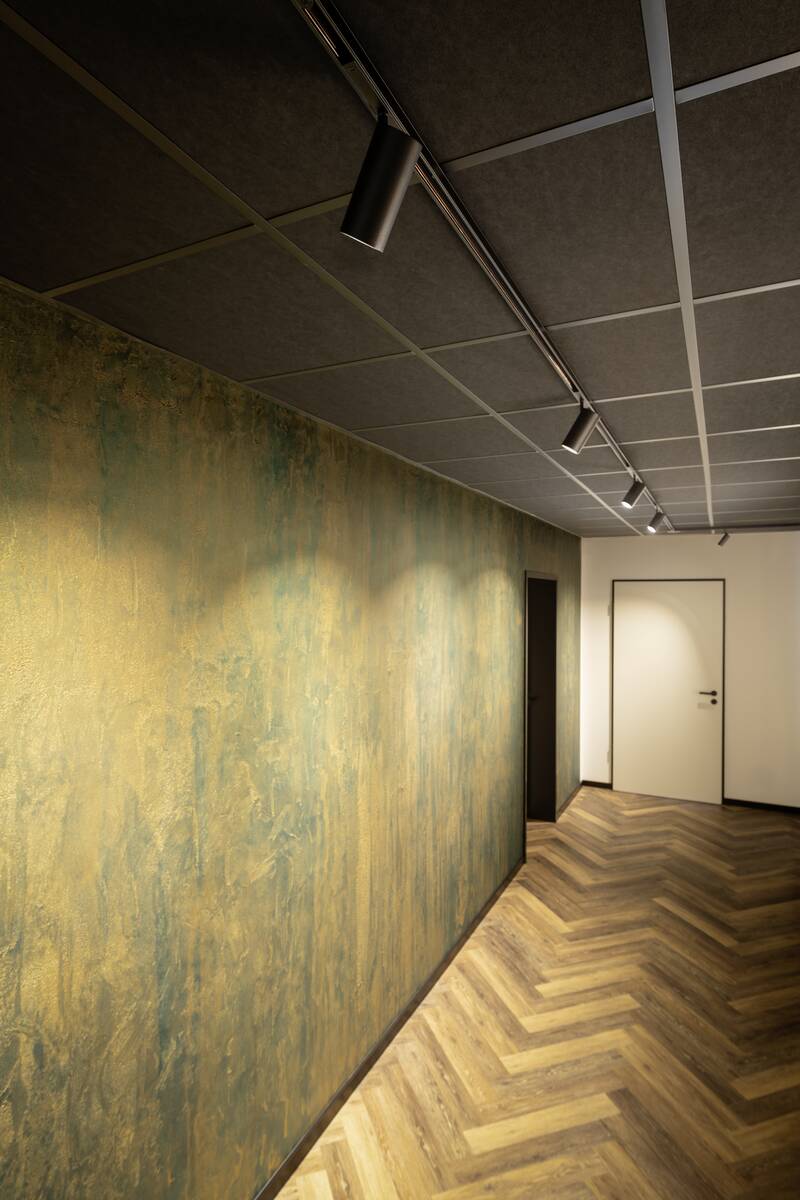

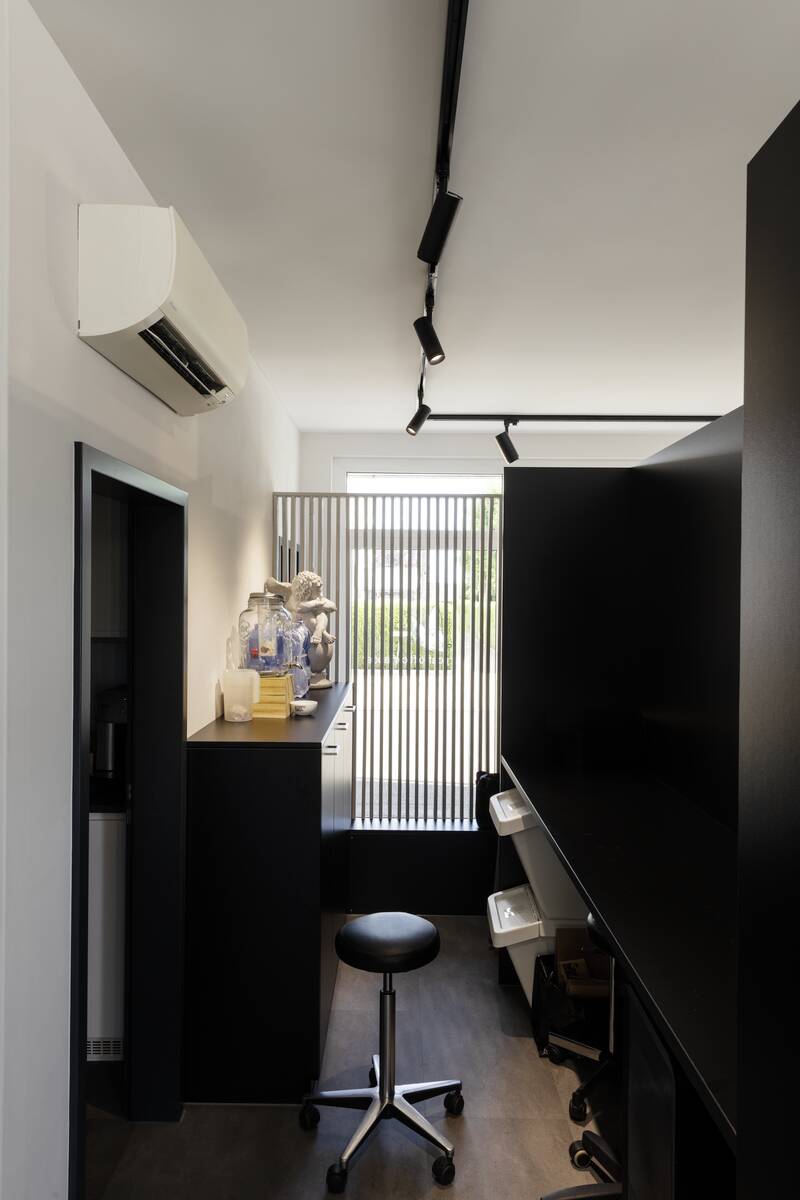

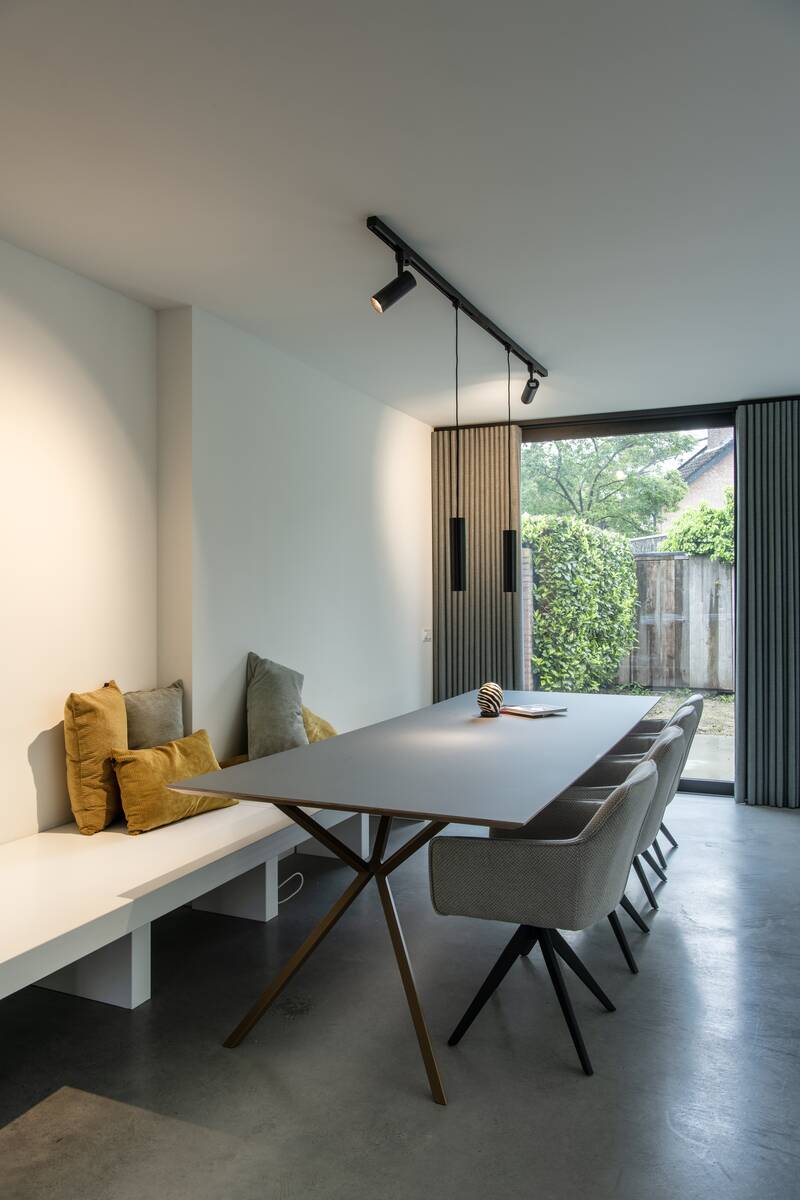

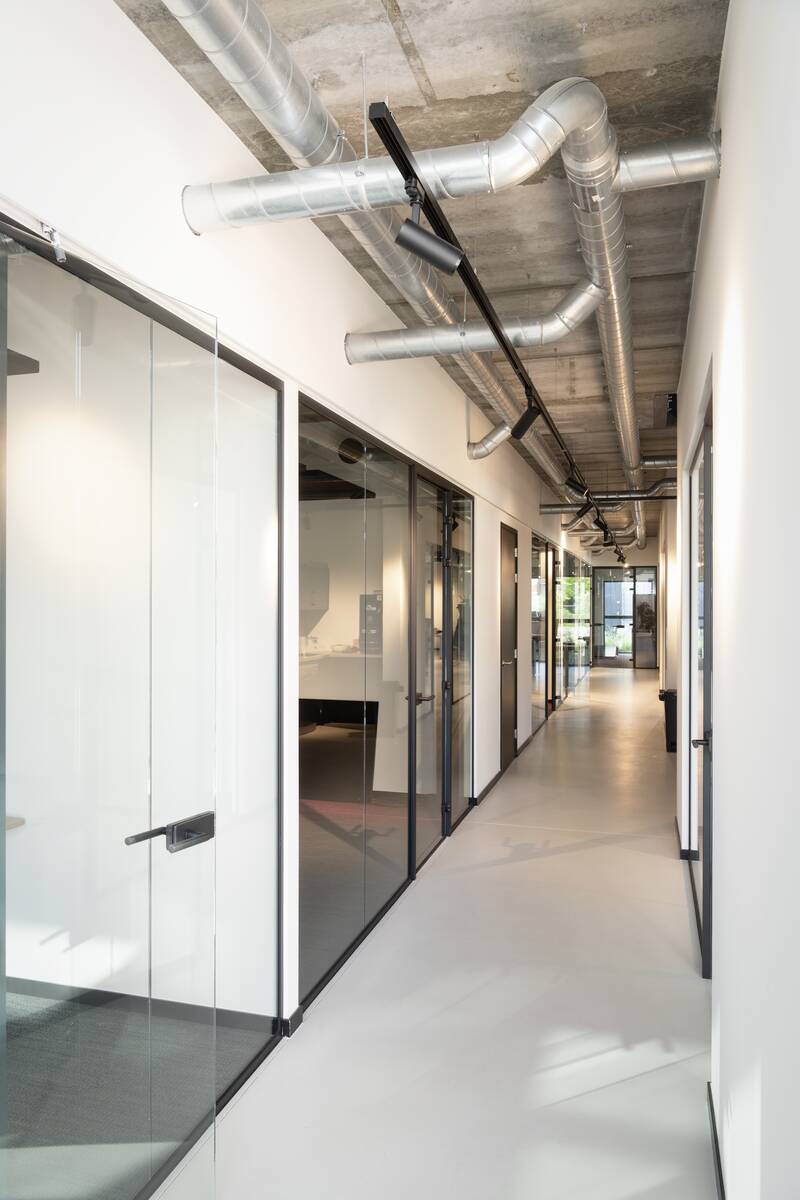

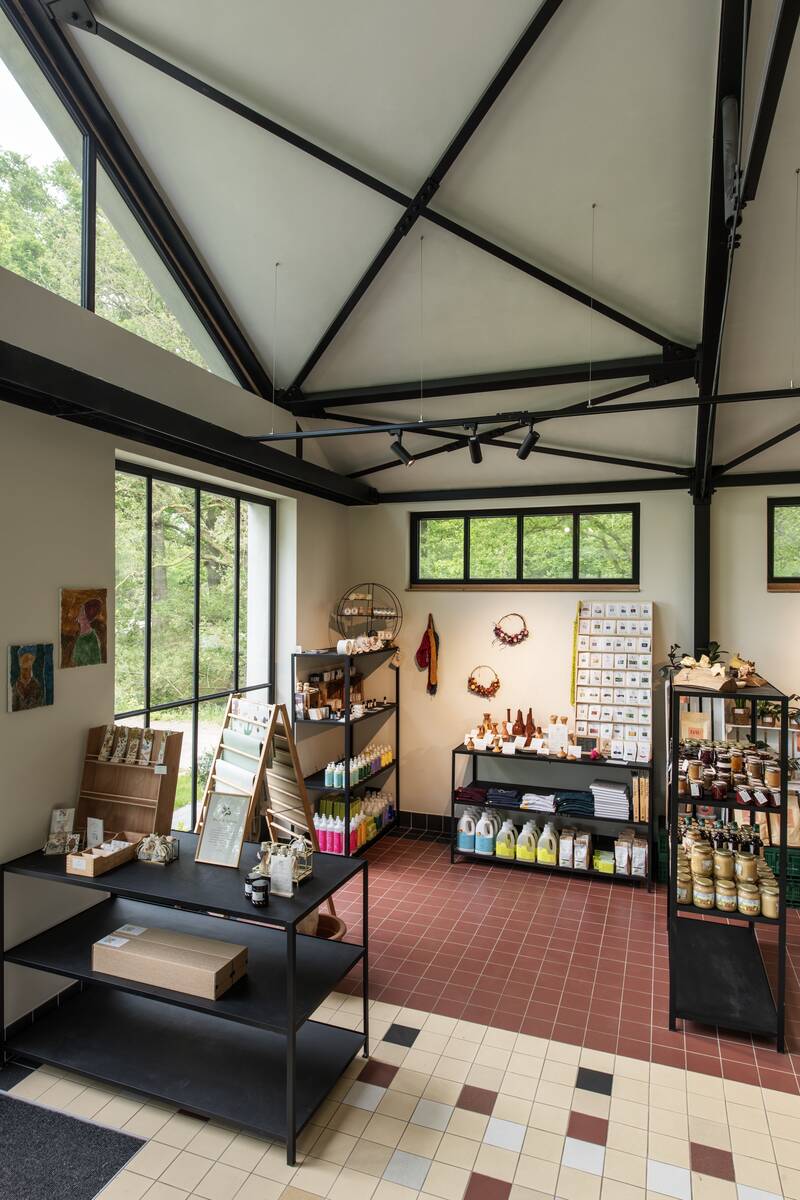

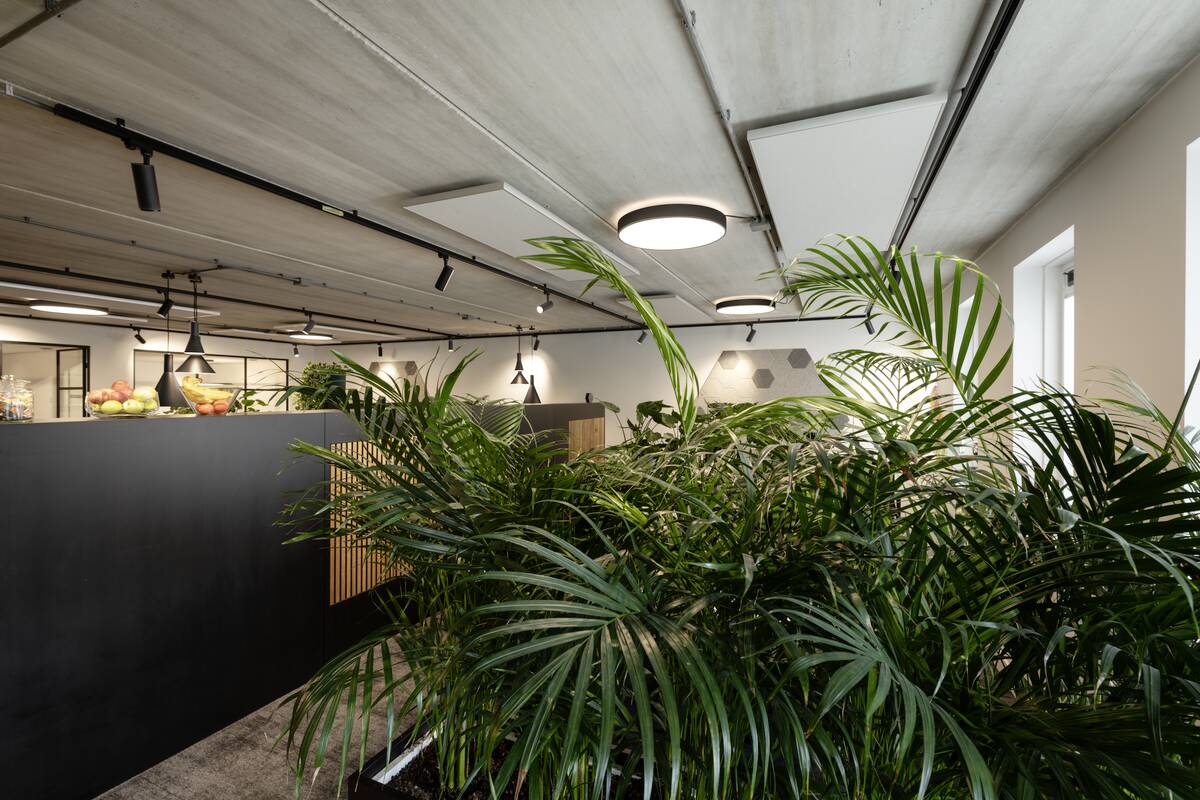

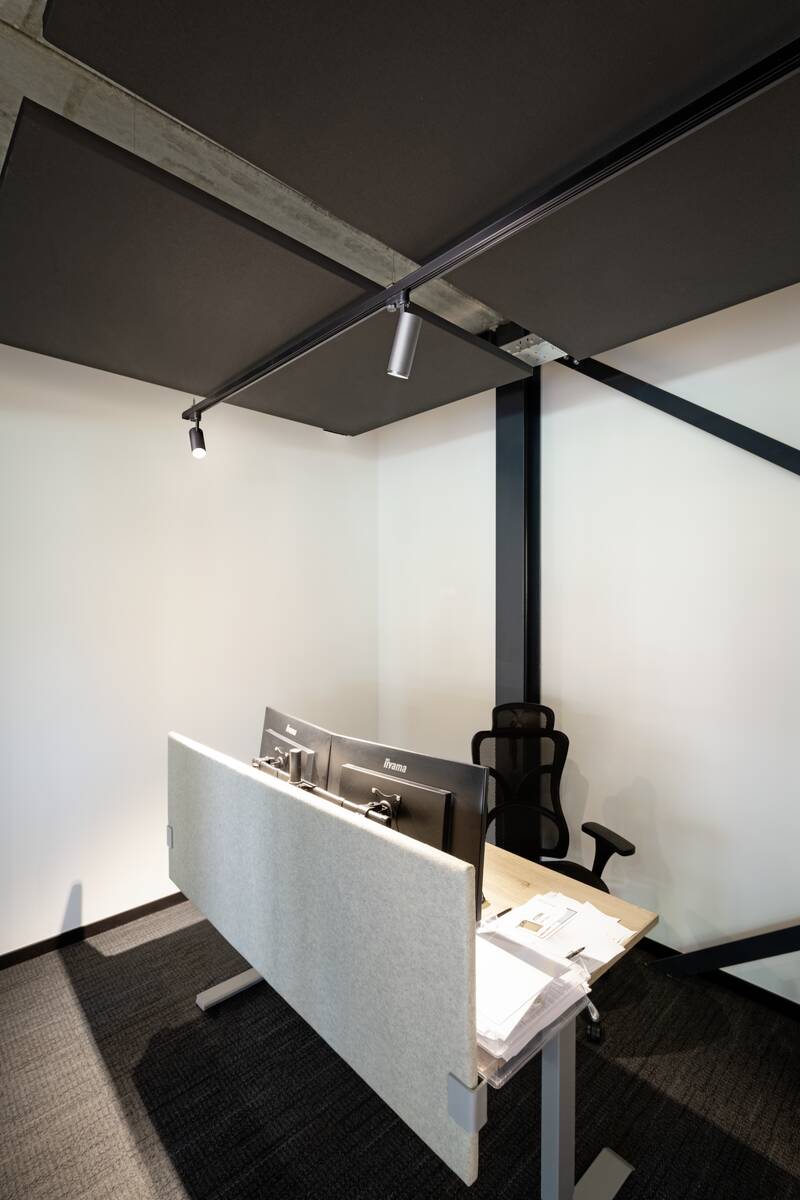

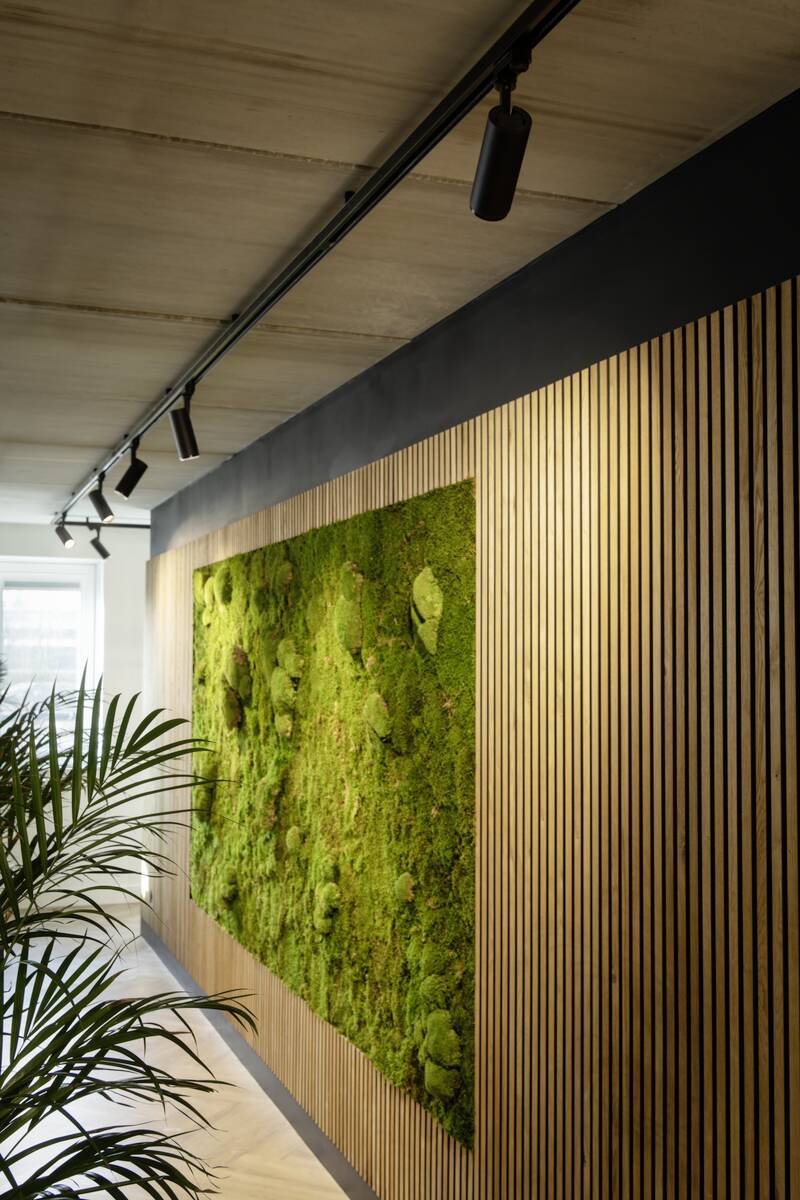

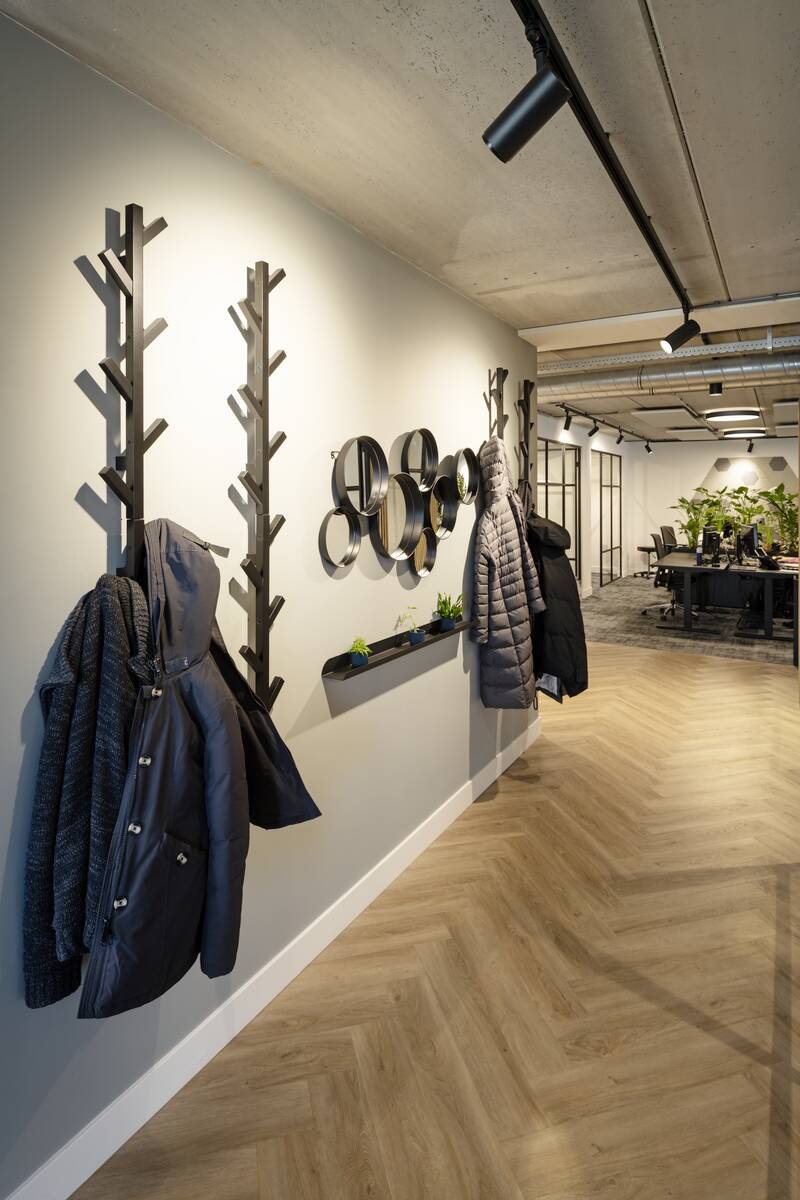

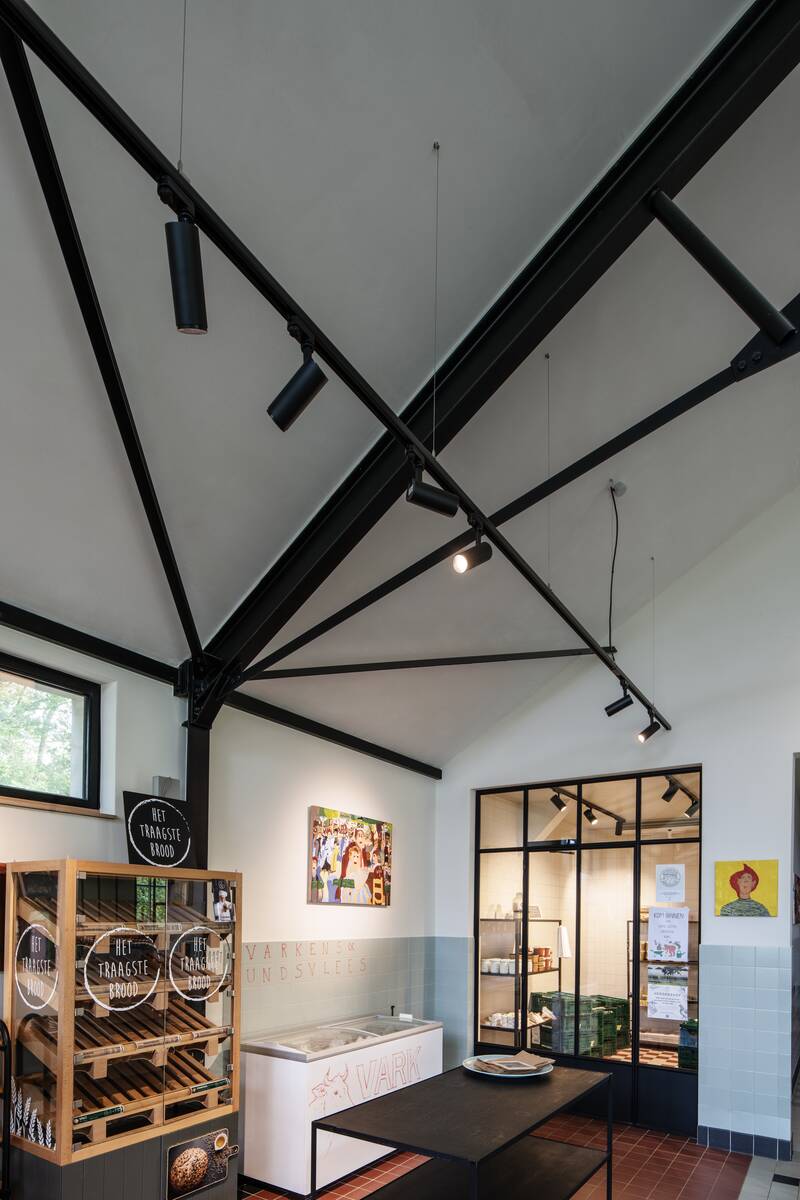

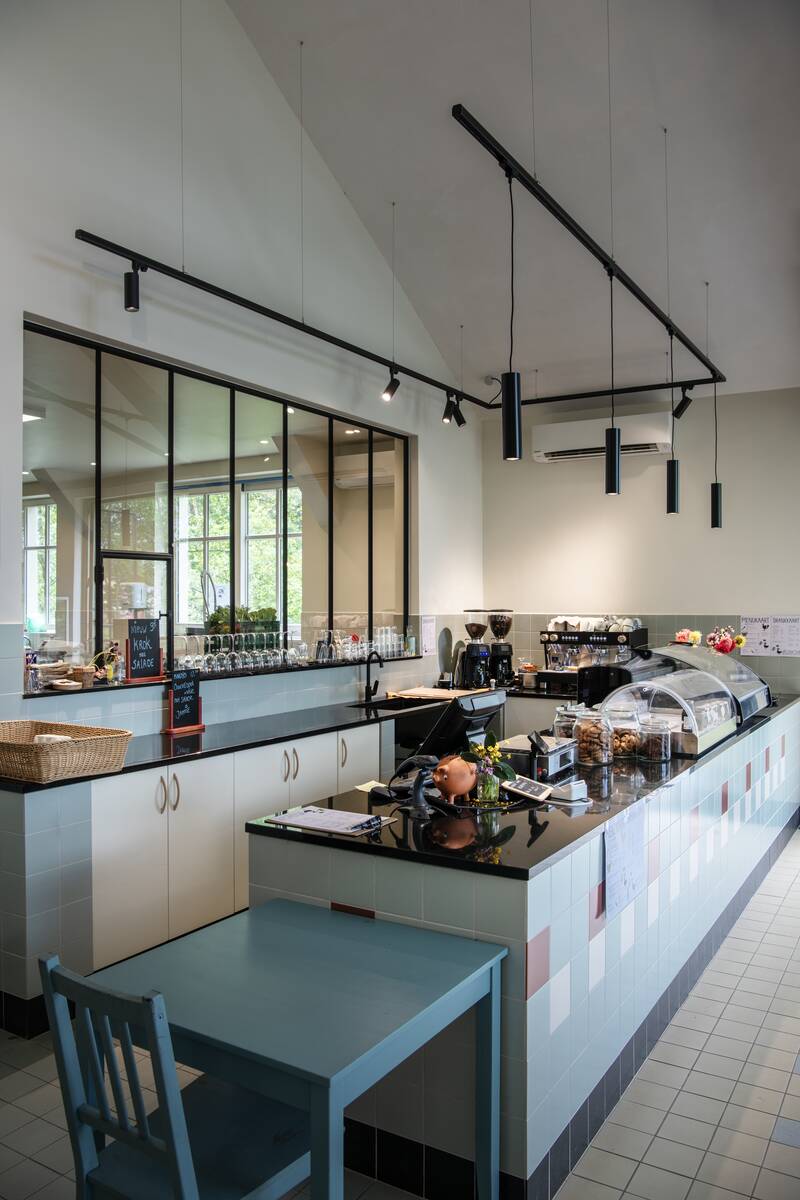

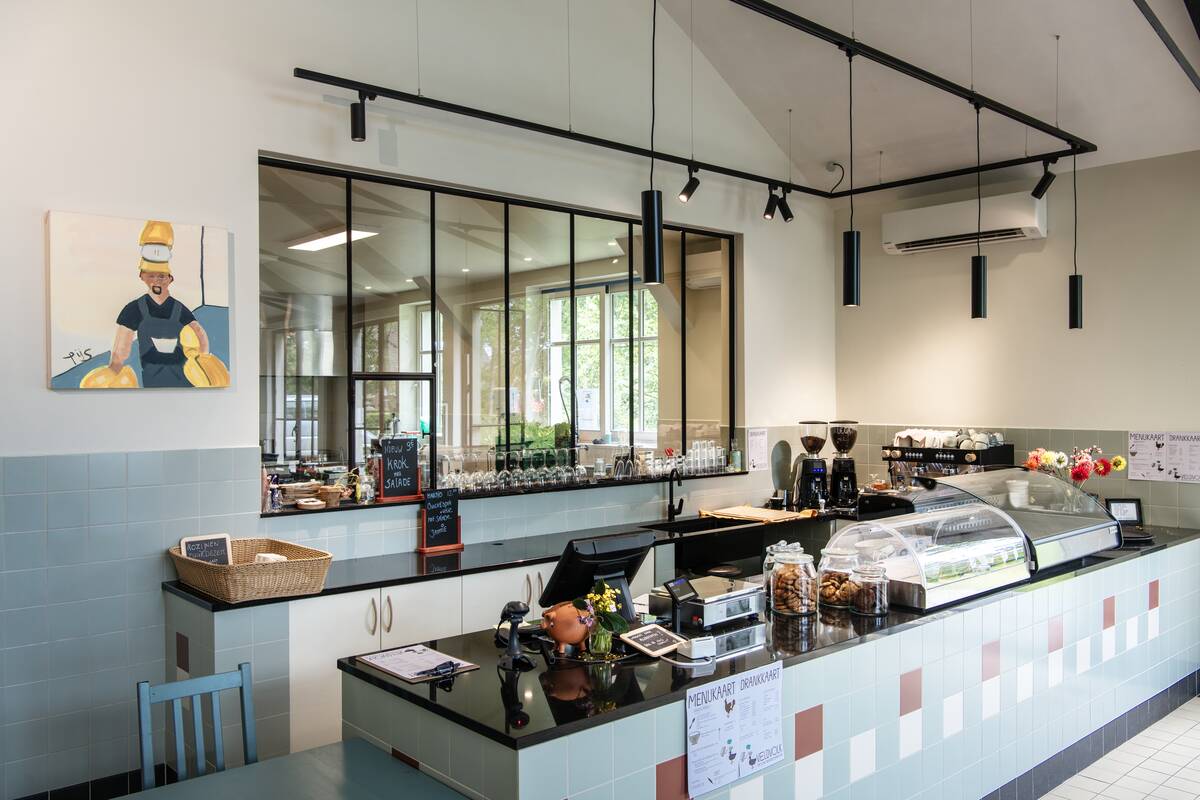

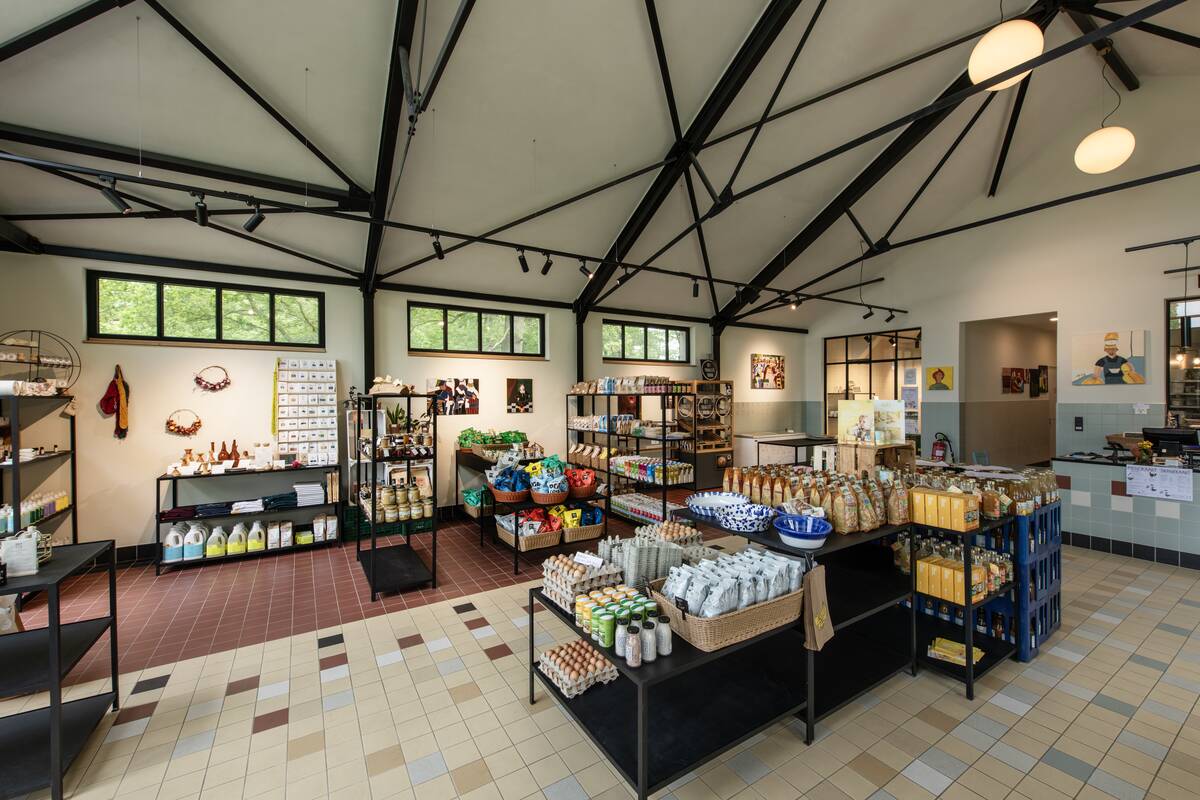

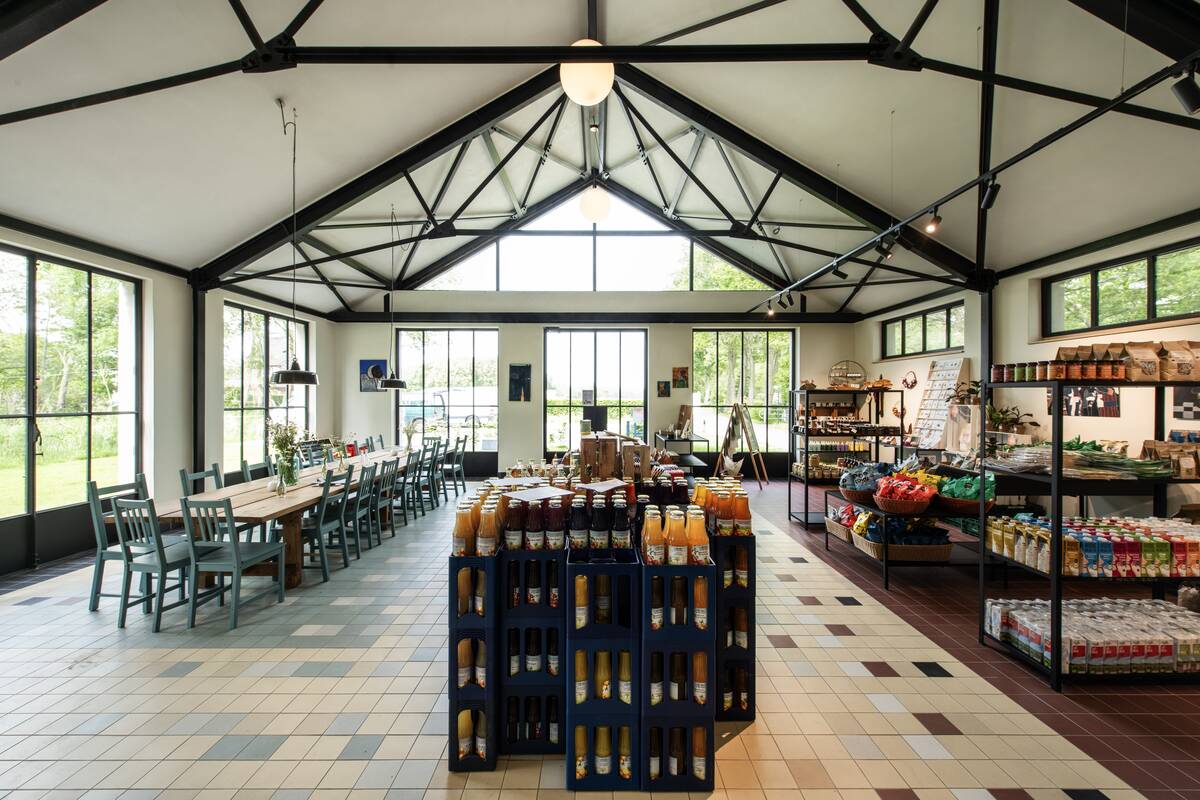

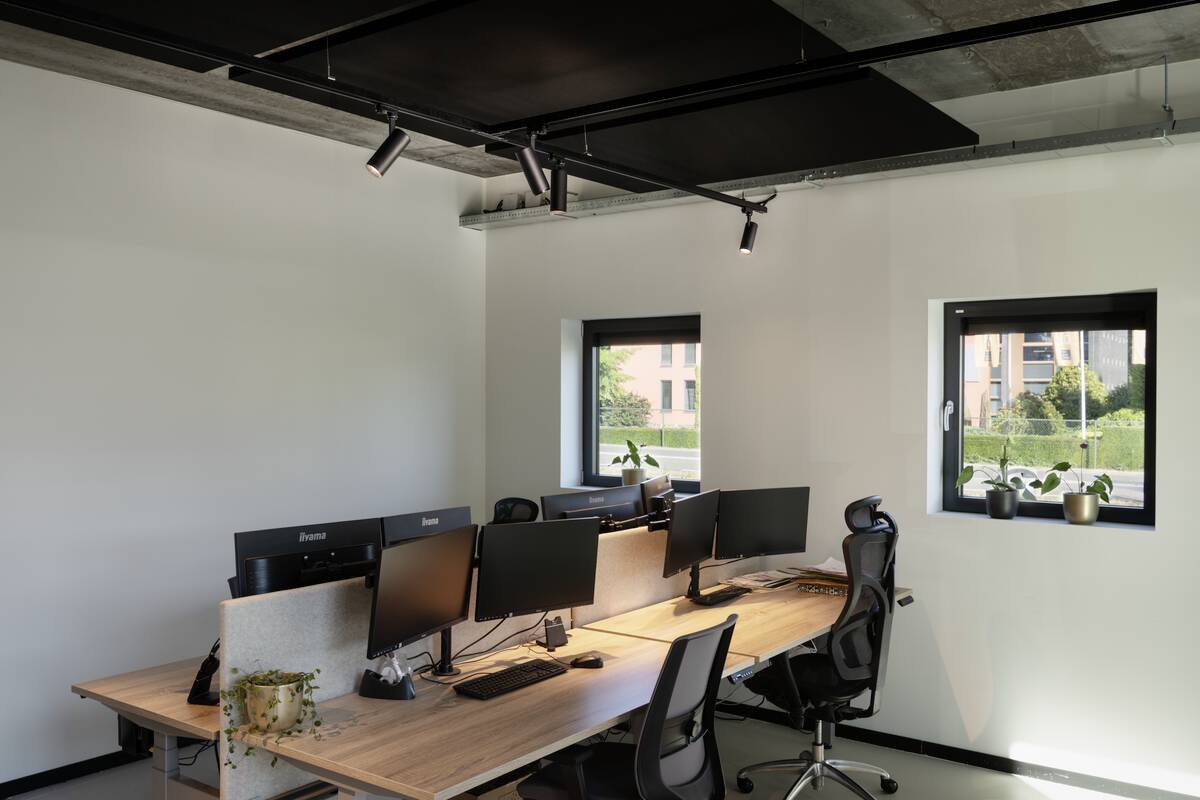

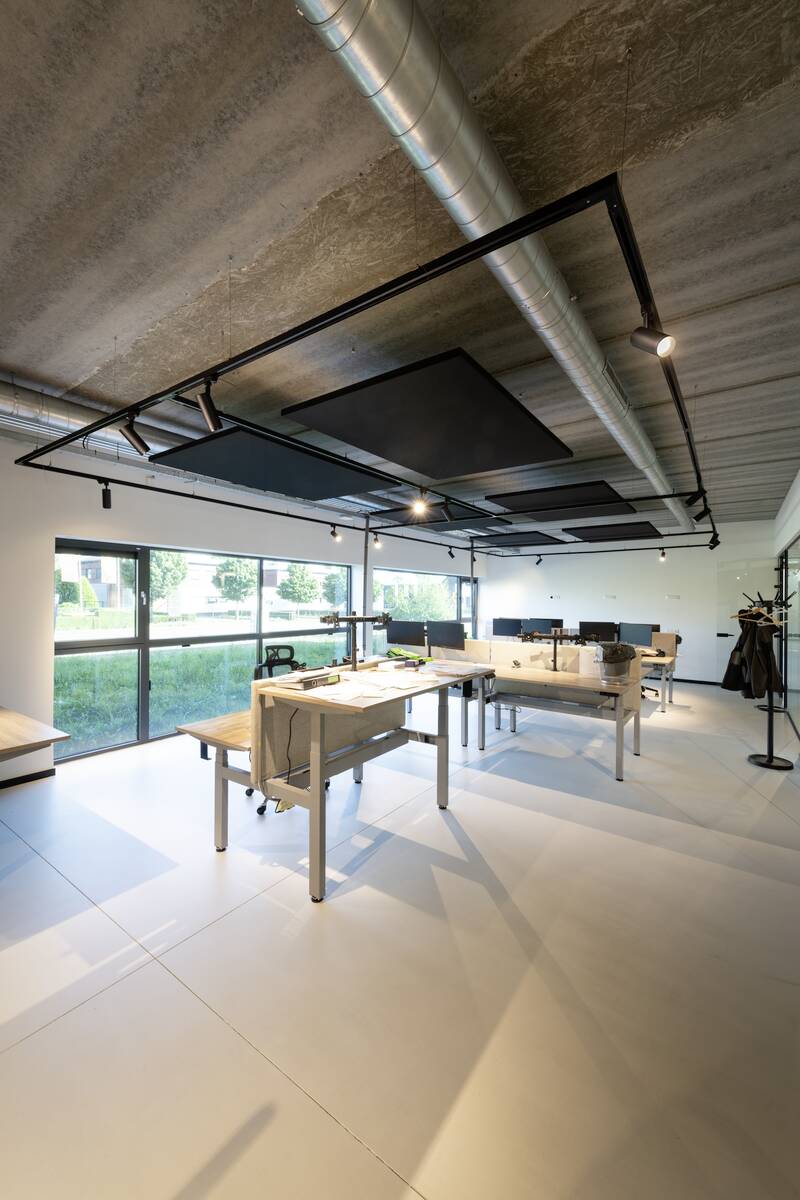

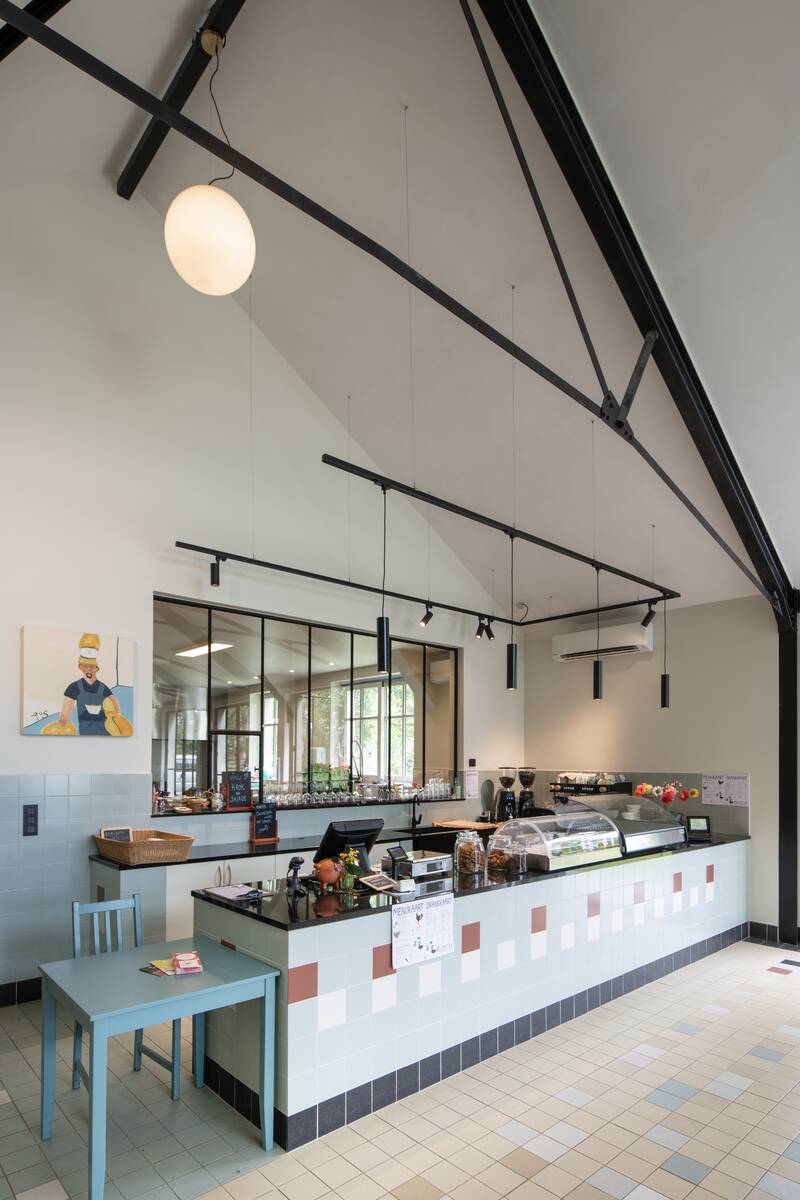

The NUMINOS® M 3Ph. DALI 3~ spot is a cylindrical spotlight designed for mounting on ceiling track systems. It is particularly suitable for indoor use where targeted lighting is required. With a luminous flux of 1800 lumens and a colour temperature of 3000 K, it provides warm white light. The beam angle is 36°, allowing for focused light distribution. The housing is made of aluminium and comes in a matt black finish. The luminaire features DALI-2 dimming as well as touch control, enabling flexible light adjustment. The IP20 rating indicates protection against solid foreign objects but no protection against water. With a product length of 18.5 cm, a diameter of 8.5 cm, and a height of 16.5 cm, the spot is compactly sized. The declared service life is 50,000 hours.

Tehnilised andmed

Half beam angle	36 °
Colour	black
Colour temperature	3000 Kelvin
Luminous Flux	1800 lm
electrical power	13 W
CRI	90
Net weight	0.868 kg
Diameter	8.5 cm
Height	16.5 cm
Length	18.5 cm
IP Code	IP20
Service life	50000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	350 mA
Dimming options	DALI and Touch
Shape	cylindrical
Horizontal rotation range	350 °
Variant Dimm options	DALI and Touch
Different light outlets	1
Seperate beams	Yes
Vertical tilting range	90 °
Ambient temperature	-20 °C
Material	Aluminium
UGR ≤	16
LED can be changed	Control gear replaceable by a professional
Product name	NUMINOS® M
CCT Switch	No
DALI capable	Yes
Dimmable	Yes
Assembly	Track
Risk group	1
Tehnilised failid	Manual Datasheet CE declaration Removal instructions REACh
