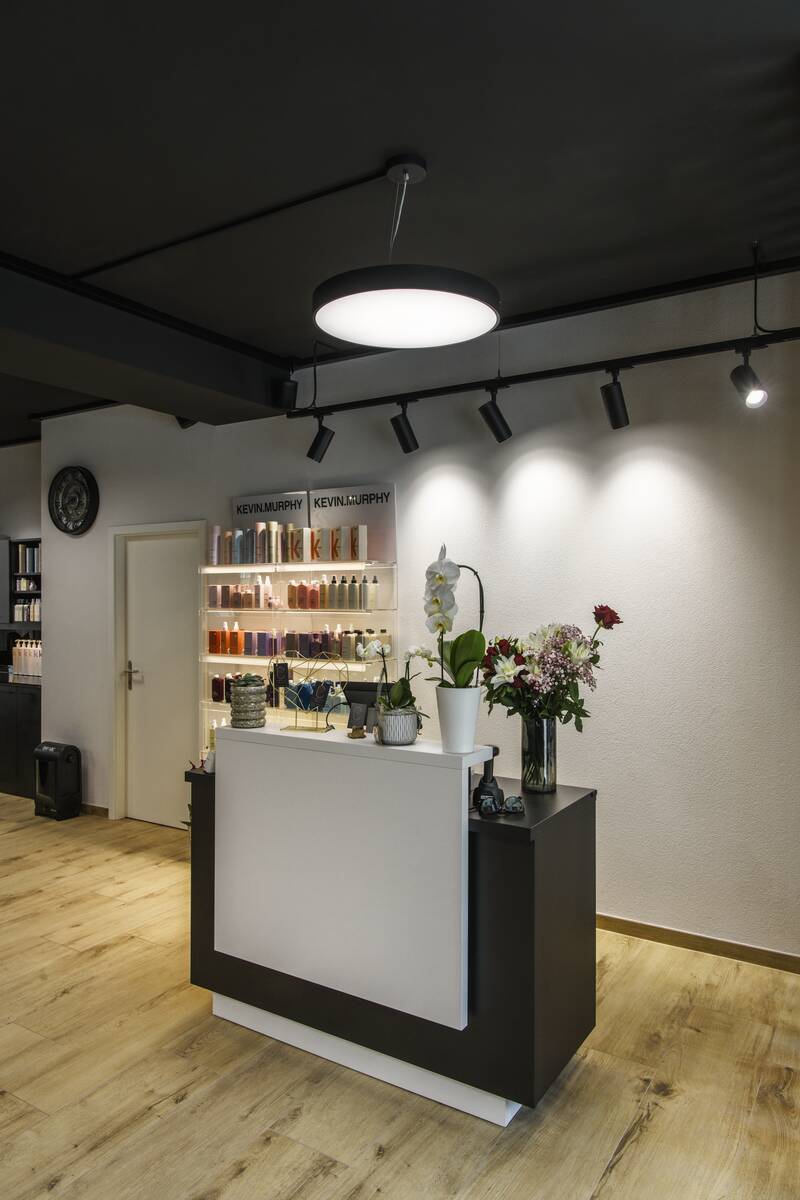

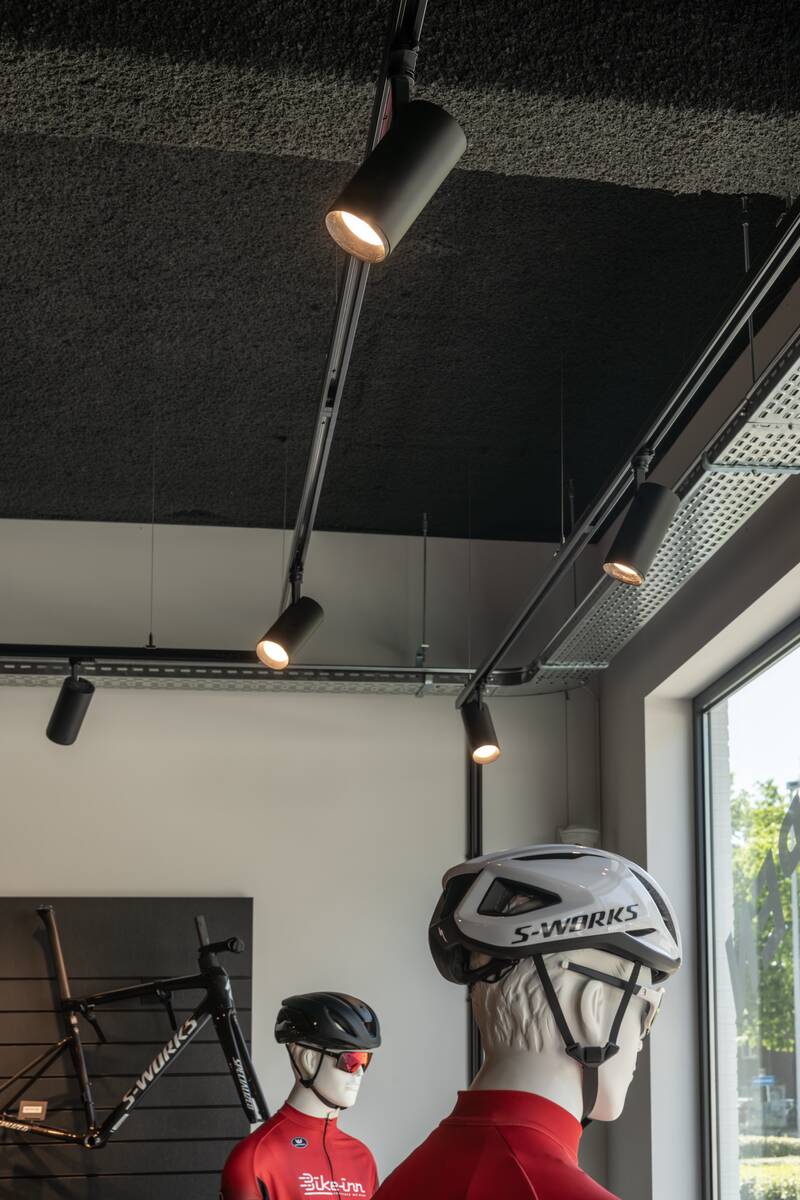

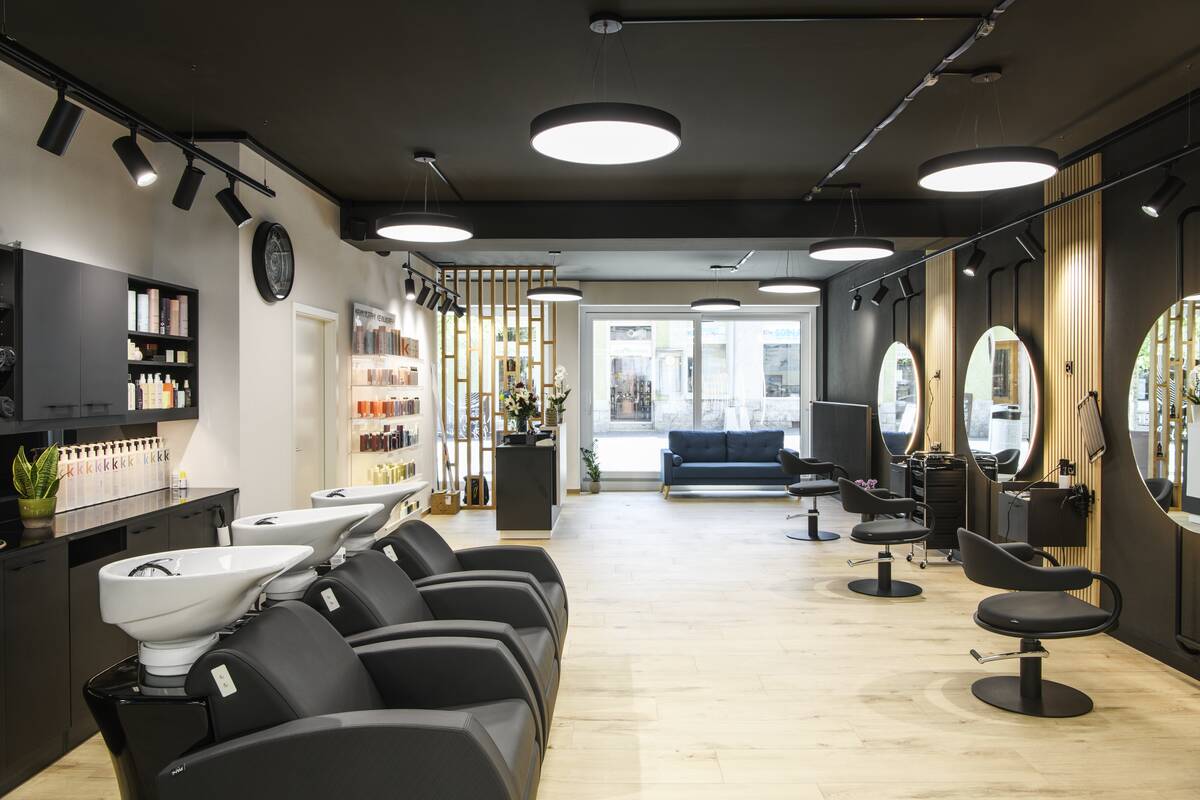

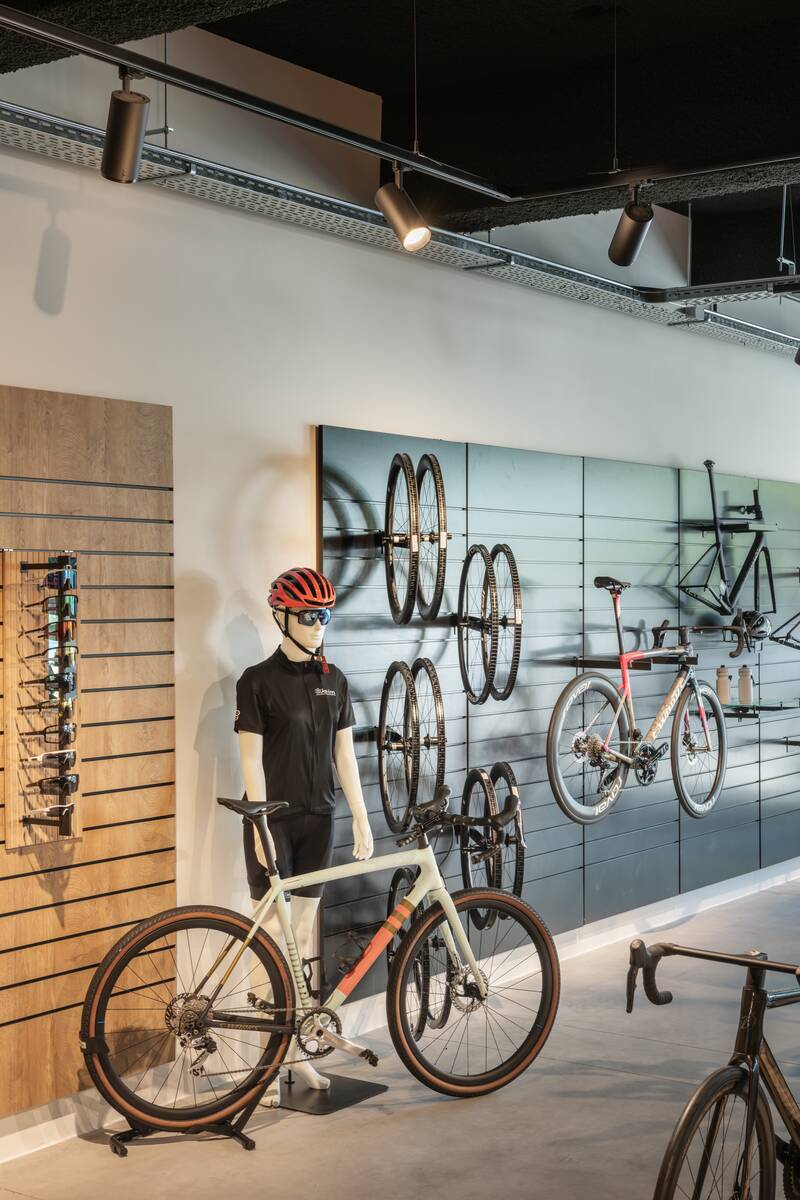

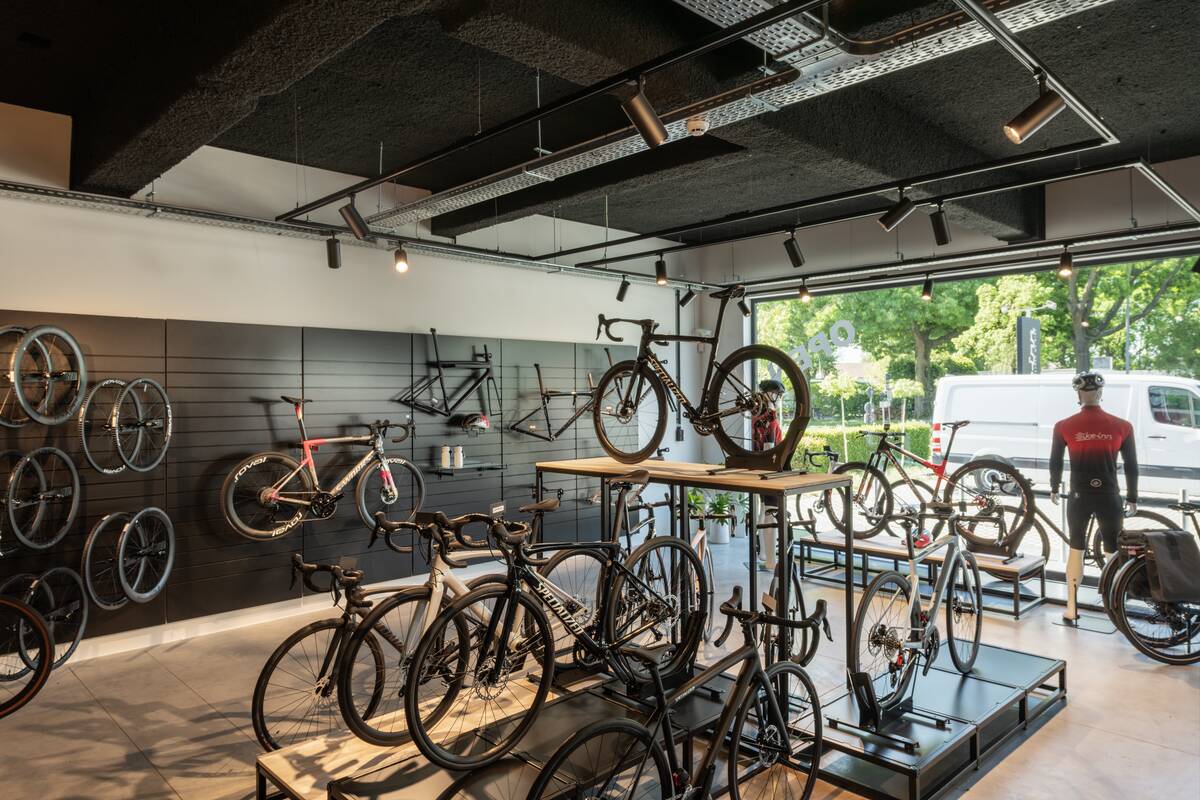

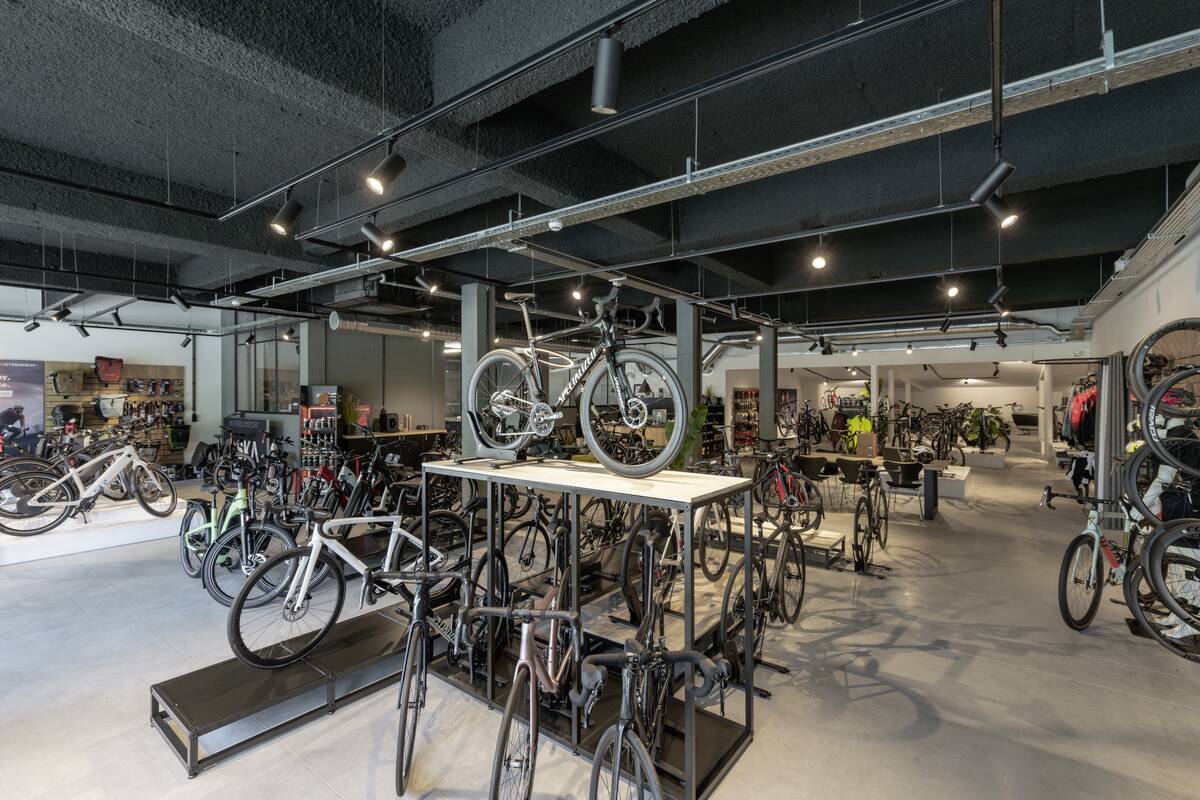

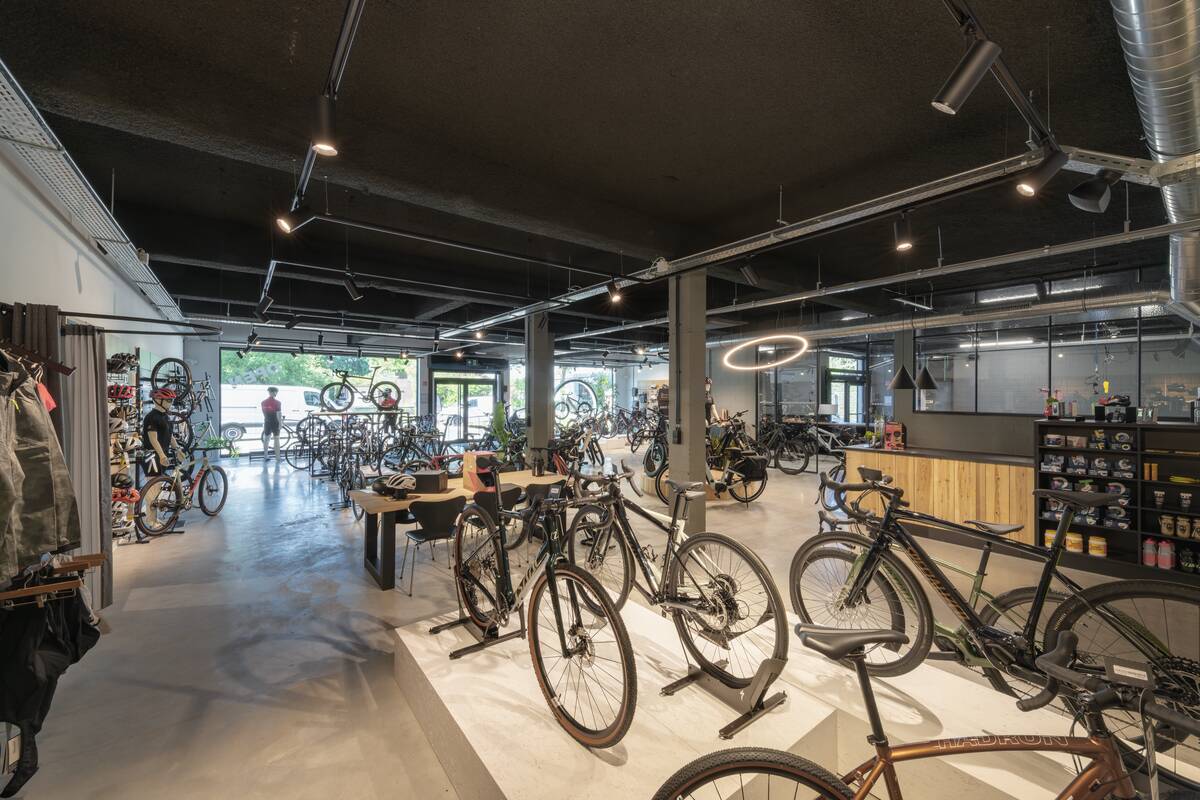

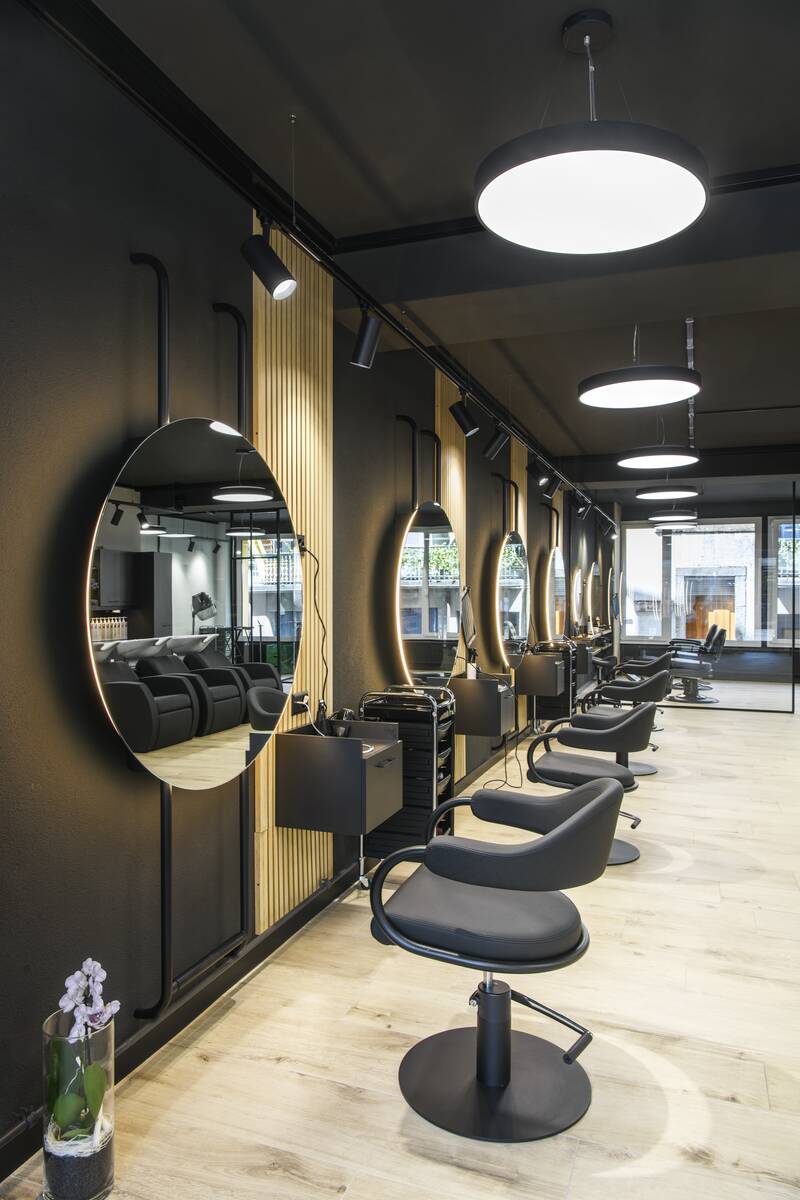

The NUMINOS® L 3Ph. DALI 3~ spot is a cylindrical spotlight designed for mounting on ceiling track systems. It is particularly suitable for indoor use where directional lighting is required. The spot delivers a luminous flux of 2400 lumens at a colour temperature of 3000 K and a beam angle of 36°. The power consumption is 19 watts. The housing is made of aluminium with a matt black finish. With a length of 21.3 cm, a diameter of 10 cm, and a height of 18 cm, the device is compactly designed. The IP20 protection rating allows use in protected indoor areas. Dimming is controlled via DALI 2 and touch technology, enabling flexible light management. The declared service life is 50,000 hours.

Tehnilised andmed

Half beam angle	36 °
Colour	black
Colour temperature	3000 Kelvin
Luminous Flux	2400 lm
electrical power	19 W
CRI	90
Net weight	1.137 kg
Diameter	10 cm
Height	18 cm
Length	21.3 cm
IP Code	IP20
Service life	50000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	500 mA
Dimming options	DALI and Touch
Shape	cylindrical
Horizontal rotation range	350 °
Variant Dimm options	DALI and Touch
Different light outlets	1
Seperate beams	Yes
Vertical tilting range	90 °
Ambient temperature	-20 °C
Material	Aluminium
UGR ≤	16
LED can be changed	Control gear replaceable by a professional
Product name	NUMINOS® L
CCT Switch	No
DALI capable	Yes
Dimmable	Yes
Assembly	Track
Risk group	1
